Description
Brand - DODGE

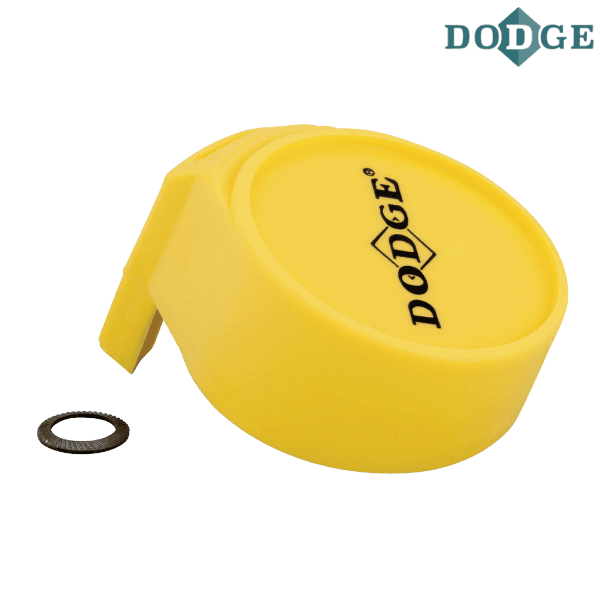

Item Number - 128203 DODGE - EC-204-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 204
Description - EC-204-X
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 0.5 - 0.75
Weight (lbs) - 0.03

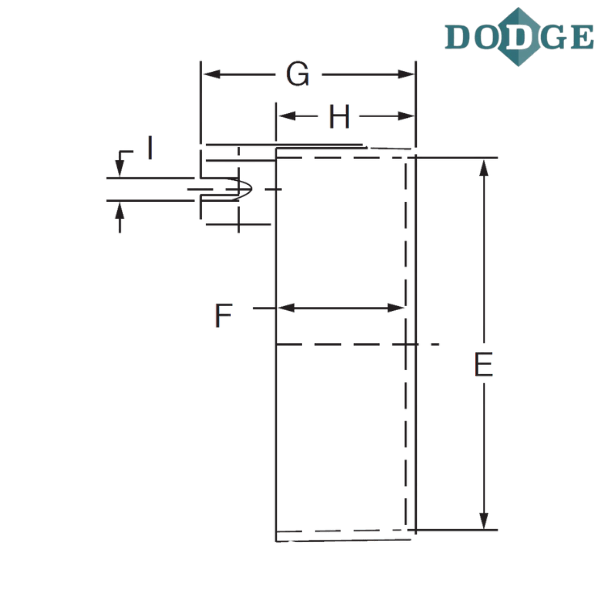

A (inch) - 2.21875
C (inch) - 2.734375
D (inch) - 1.390625
E (inch) - 2.03125
F (inch) - 1.015625
G (inch) - 1.8125
H (inch) - 1.15625
I (inch) - 0.3125
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 20
Weight (kg) - 0.015
A (mm) - 56.1
C (mm) - 69.6
D (mm) - 35.3
E (mm) - 51.6
F (mm) - 25.7
G (mm) - 45.7
H (mm) - 29.5
I (mm) - 7.9
** Images are for representation purposes only
