128202 DODGE - EC-204-P

Brand - DODGE
Item Number - 128202 DODGE - EC-204-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 204
Description - EC-204-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 0.5 - 0.75
Weight (lbs) - 0.03

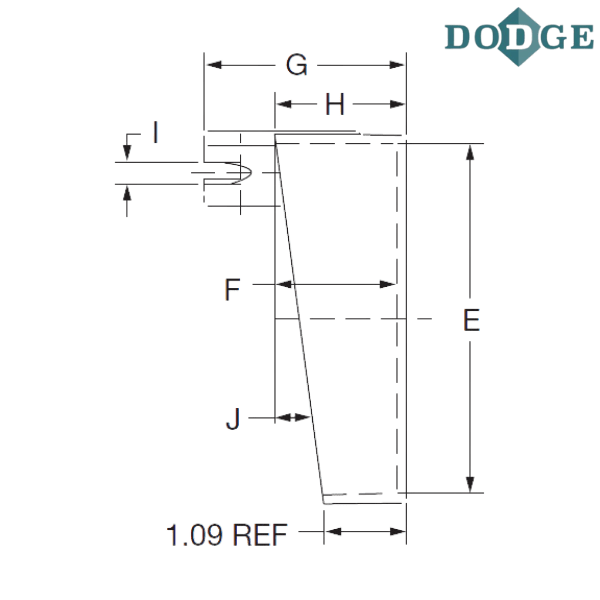

A (inch) - 2.046875
C (inch) - 2.578125
D (inch) - 1.296875
E (inch) - 1.859375
F (inch) - 1.015625
G (inch) - 1.765625
H (inch) - 1.15625
I (inch) - 0.3125
J - 11º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 20
Weight (kg) - 0.014
A (mm) - 52
C (mm) - 65.3
D (mm) - 33
E (mm) - 47.2
F (mm) - 25.7
G (mm) - 45
H (mm) - 29.5
I (mm) - 7.9
J - 11º

Notes :

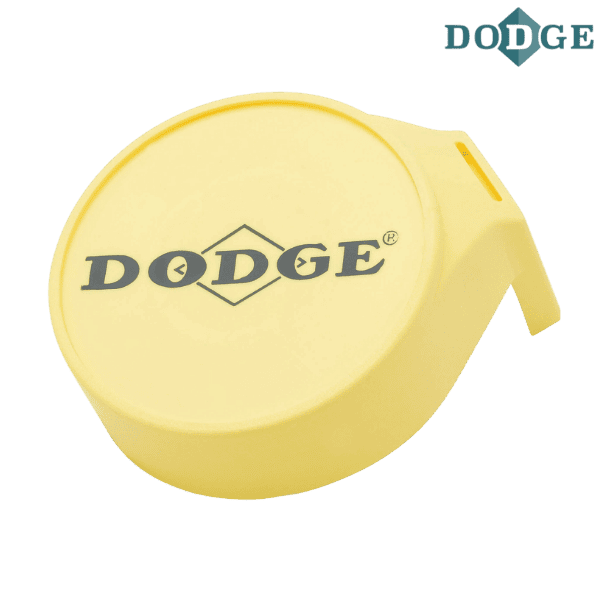

P - Polymer housing

** Images are for representation purposes only
