Description
Brand - DODGE

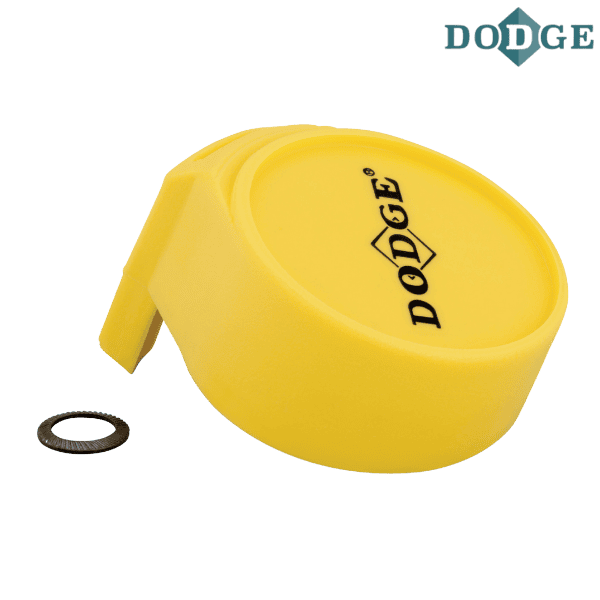

Item Number - 128201 DODGE - EC-203-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 203
Description - EC-203-X
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 0.5 and 0.625
Weight (lbs) - 0.02

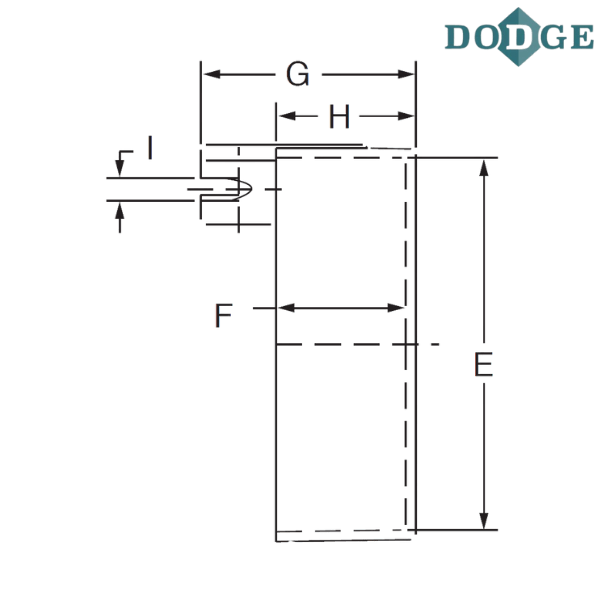

A (inch) - 1.796875
C (inch) - 2.203125
D (inch) - 1.1875
E (inch) - 1.640625
F (inch) - 0.796875
G (inch) - 1.453125
H (inch) - 0.9375
I (inch) - 0.25
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 17
Weight (kg) - 0.01
A (mm) - 45.5
C (mm) - 56.1
D (mm) - 30.2
E (mm) - 41.7
F (mm) - 20.3
G (mm) - 37.1
H (mm) - 23.9
I (mm) - 6.4
** Images are for representation purposes only
