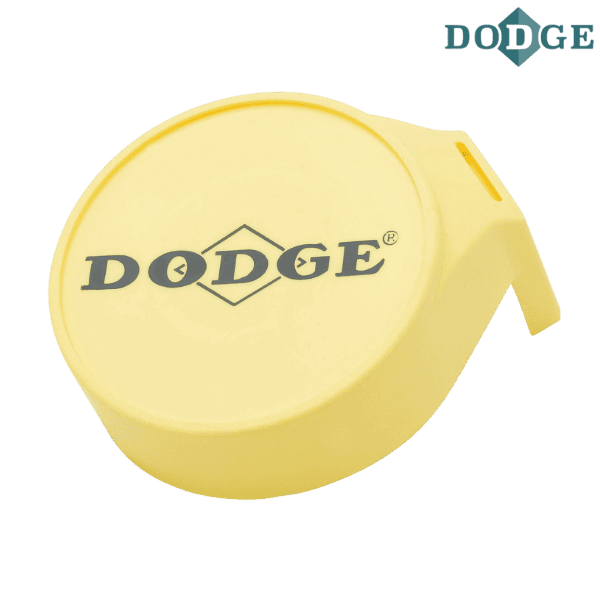

128200 DODGE - EC-203-P

Brand - DODGE
Item Number - 128200 DODGE - EC-203-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 203
Description - EC-203-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 0.5 and 0.625
Weight (lbs) - 0.02

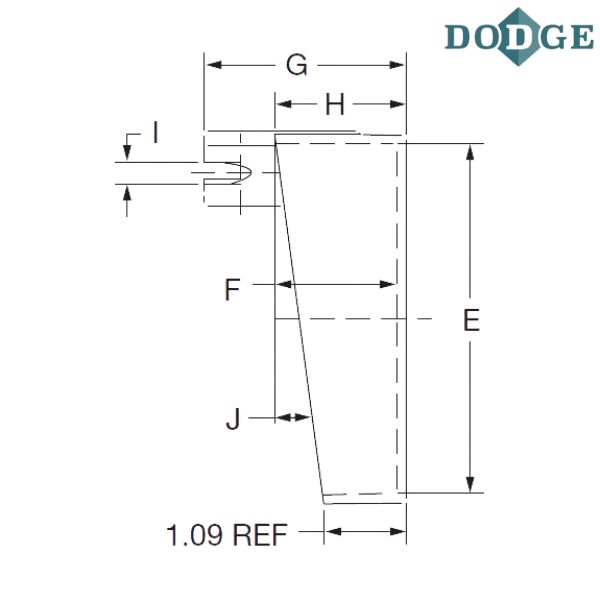

A (inch) - 1.78125
C (inch) - 2.109375
D (inch) - 1.09375
E (inch) - 1.640625
F (inch) - 0.765625
G (inch) - 1.453125
H (inch) - 0.90625
I (inch) - 0.25
J - 9º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 17
Weight (kg) - 0.009
A (mm) - 45.2
C (mm) - 53.6
D (mm) - 27.7
E (mm) - 41.7
F (mm) - 19.6
G (mm) - 37.1
H (mm) - 22.9
I (mm) - 6.4
J - 9º

Notes :
P - Polymer housing

** Images are for representation purposes only
