128196 DODGE - F4B-SLX-203


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 128196 DODGE - F4B-SLX-203
Category - Eccentric SXV Collar Ball Bearings (SLX Light Duty 4-Bolt Flange Bearings)
Series - 211
Shaft Size (inch) - 2.1875
Description - F4B-SLX-203
Weight (lbs) - 4.35

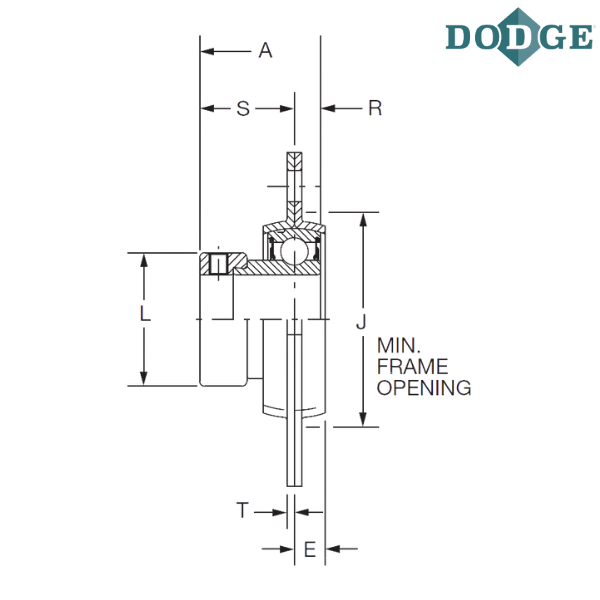

Length Through Bore (A) inch - 1.9

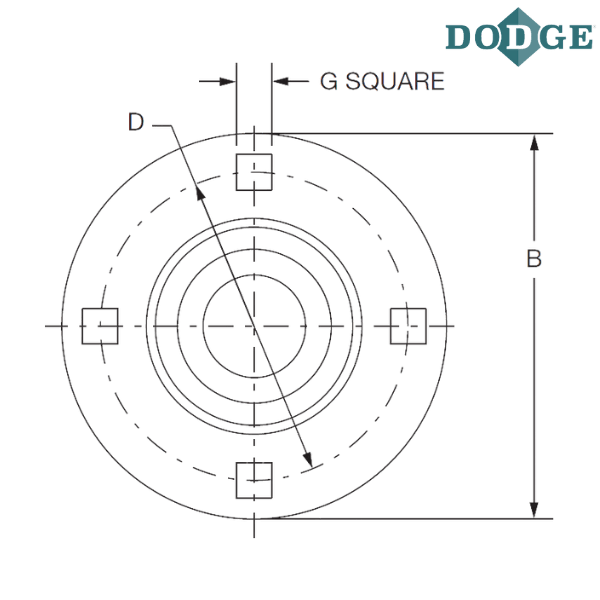

Overall Outer Diameter (B) inch - 6.56
Bolt Circle (D) inch - 5.44
E (inch) - 0.47
Bolt Diameter (G*) inch - 0.53
J (inch) - 4.44
L (inch) - 2.75
R (inch) - 0.47
S (inch) - 1.43
T (inch) - 0.15
Housing Radial Load Rating (lbs) - 2300
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
SLX - Narrow inner ring, light duty, stamped steel housing, eccentric locking collar

* Mounting bolt holes will accept carriage or machine bolts.

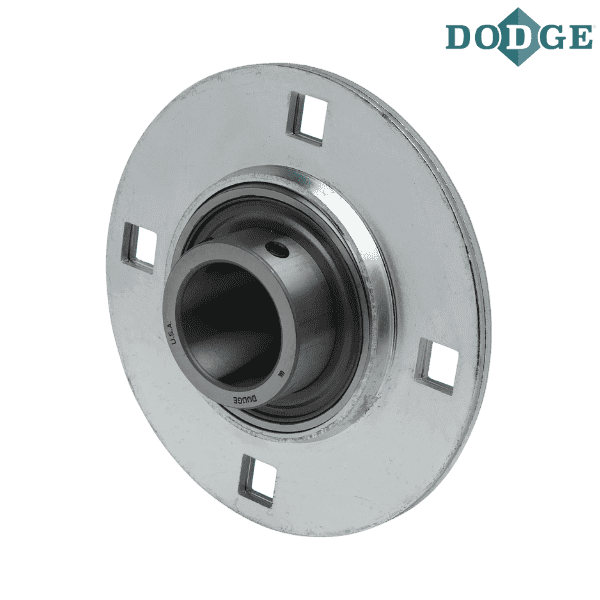

** Images are for representation purposes only
