127746 DODGE - F2B-DLEZ-25M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127746 DODGE - F2B-DLEZ-25M-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F2B-DLEZ-25M-SHCR
Weight (kg) - 0.65

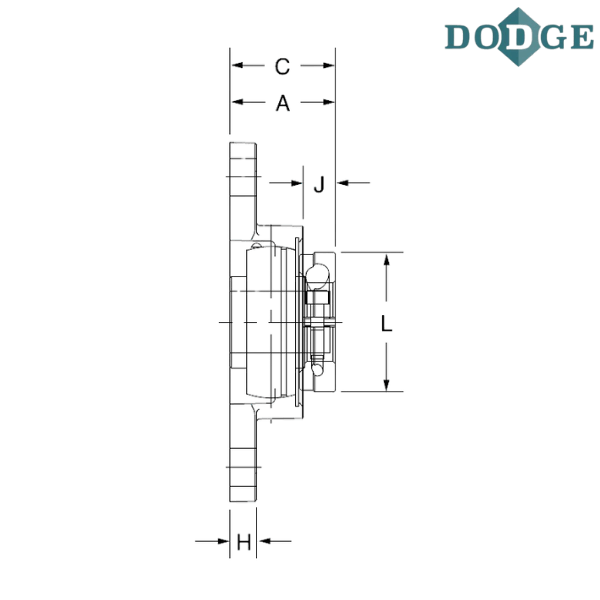

Length Through Bore (A) mm - 36.6
Overall Length (B) mm - 124.2
Thickness (C) mm - 37.1
Bolt Center to Center Length (D) mm - 98.8
F-Bolt Diameter - M10
H (mm) - 8.9
J (mm) - 12.2
L (mm) - 50.5
Overall Width (M) mm - 66.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
