127743 DODGE - P2B-DLEZ-40M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127743 DODGE - P2B-DLEZ-40M-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 208
Shaft Size (mm) - 40
Description - P2B-DLEZ-40M-SHCR
Weight (kg) - 2.22

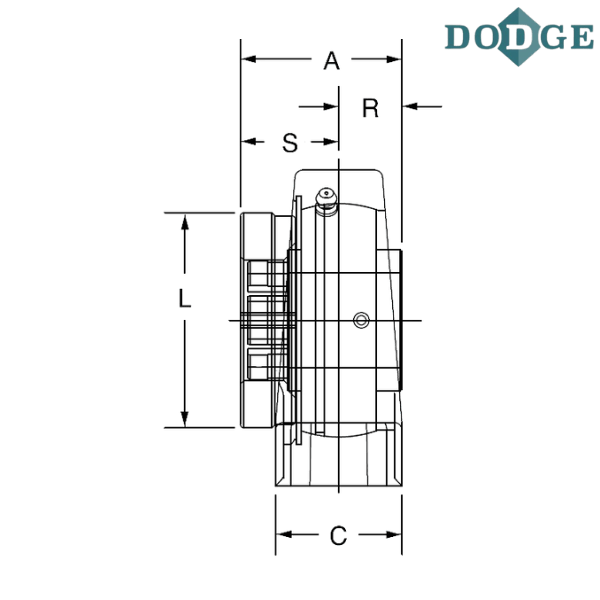

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 177.8
Width (C) mm - 38.1
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 152.4
F-Bolt Diameter - M12
G (mm) - 24.6
H (mm) - 19.1
Overall Height (J) mm - 101.6
L (mm) - 69.6
Base to Center Height (M) mm - 54
R (mm) - 19.1
S (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
