127739 DODGE - P2B-DLEZ-20M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127739 DODGE - P2B-DLEZ-20M-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - P2B-DLEZ-20M-SHCR
Weight (kg) - 0.65

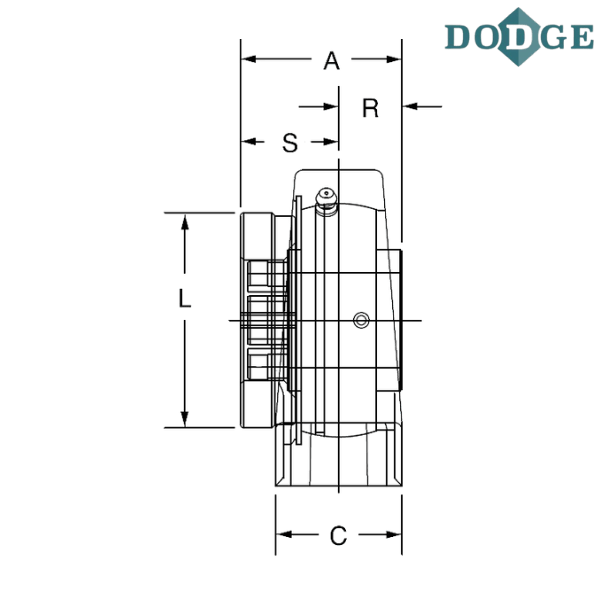

Length Through Bore (A) mm - 32.5
Overall Length (B) mm - 127
Width (C) mm - 25.4
Bolt to Bolt Minimum Distance (D min) mm - 85.9
Bolt to Bolt Maximum Distance (D max) mm - 106.2
F-Bolt Diameter - M10
G (mm) - 21.3
H (mm) - 12.7
Overall Height (J) mm - 63.5
L (mm) - 43.4
Base to Center Height (M) mm - 33.3
R (mm) - 12.7
S (mm) - 19.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
