Description
Brand - DODGE
Item Number - 127709 DODGE - F4B-SCEZ-20M-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F4B-SCEZ-20M-SHCR
Description (With Insert With Flingers) - F4B-SCEZ-20M-SH
Weight (kg) - 0.49

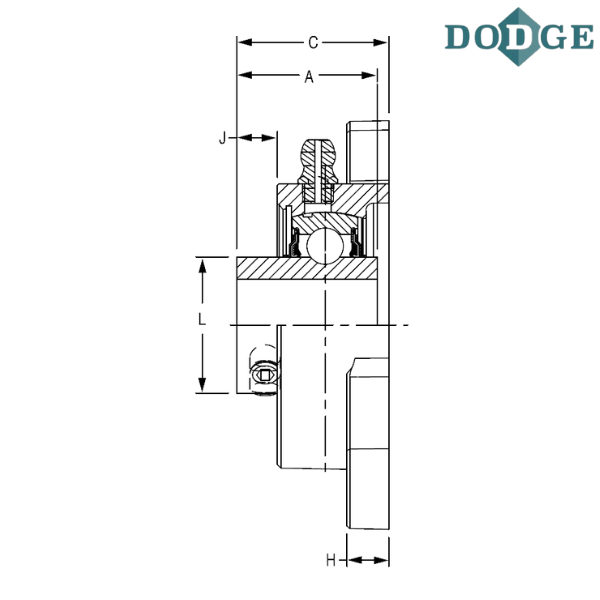

Length Through Bore (A) mm - 31.2
Overall Length (B) mm - 85.1
Thickness (C) mm - 31.8
Bolt Center to Center Length (D) mm - 63.6
F-Bolt Diameter - M10
H (mm) - 8.6
J (mm) - 8.6
L (mm) - 28.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
