127705 DODGE - F2B-SCEZ-30M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127705 DODGE - F2B-SCEZ-30M-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Shaft Size (mm) - 30
Description - F2B-SCEZ-30M-SHCR
Description (With Corrosion Resistant Insert) - F2B-SCEZ-30M-SH
Weight (kg) - 0.87

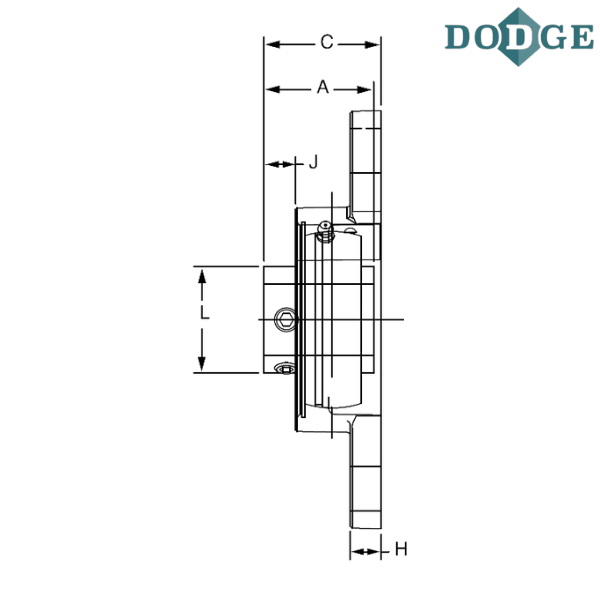

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 140
Thickness (C) mm - 40.4
Bolt Center to Center Length (D) mm - 116.5
F-Bolt Diameter - M10
H (mm) - 8.9
J (mm) - 11.7
L (mm) - 39.9
Overall Width (M) mm - 79.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
