127702 DODGE - P2B-SCEZ-50M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127702 DODGE - P2B-SCEZ-50M-SHCR
Category - E-Z KLEEN Mounted Bearings With Corrosion Resistant Insert (SCEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - P2B-SCEZ-50M-SHCR
Description (Standard Insert with Flingers) - P2B-SCEZ-50M-SH
Weight (kg) - 2.29

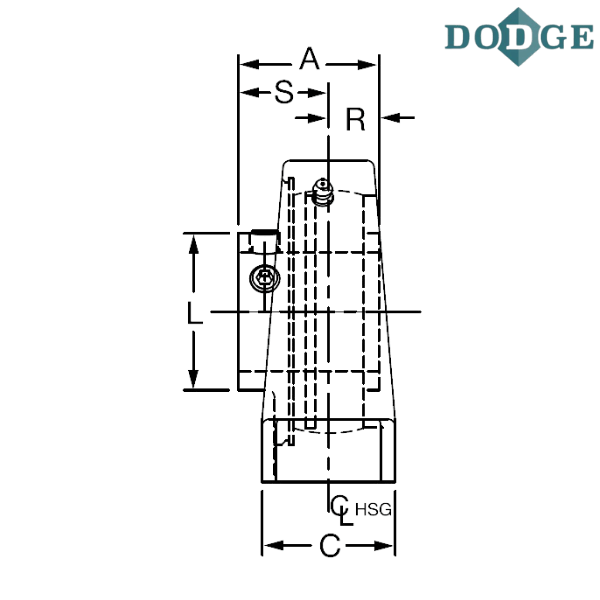

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 203.2
Width (C) mm - 41.4
Bolt to Bolt Minimum Distance (D min) mm - 146.3
Bolt to Bolt Maximum Distance (D max) mm - 169.7
F-Bolt Diameter - M16
G (mm) - 29
H (mm) - 15.7
Overall Height (J) mm - 109.5
L (mm) - 61.7
Base to Center Height (M) mm - 57.2
R (mm) - 19.1
S (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
