127695 DODGE - F4B-SCEZ-108-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127695 DODGE - F4B-SCEZ-108-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F4B-SCEZ-108-SHCR
Part Number (With Insert With Flingers) - 056809
Description (With Insert With Flingers) - F4B-SCEZ-108-SH
Weight (lbs) - 3.7

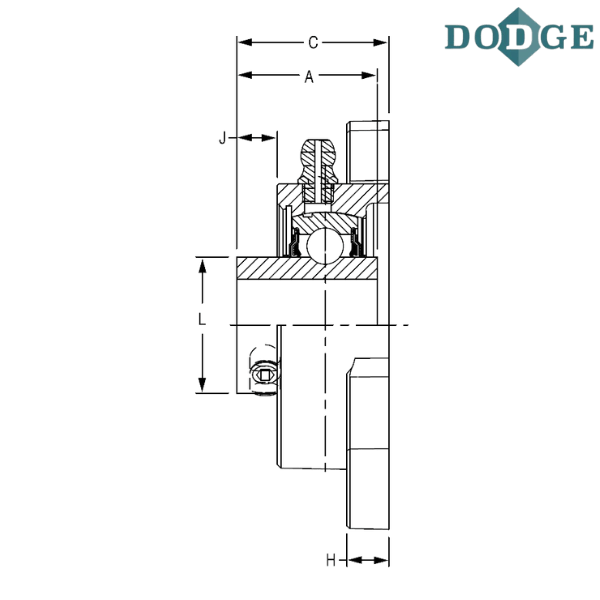

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.06
Thickness (C) inch - 1.97
Bolt Center to Center Length (D) inch - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.43
J (inch) - 0.62
L (inch) - 2.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
