127568 DODGE - F2B-SCEZ-45M-PCR

Brand - DODGE
Item Number - 127568 DODGE - F2B-SCEZ-45M-PCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Polymer Housed 2-Bolt Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - F2B-SCEZ-45M-PCR
Description (Standard Insert With Flingers) - F2B-SCEZ-45M-P
Weight (kg) - 0.88

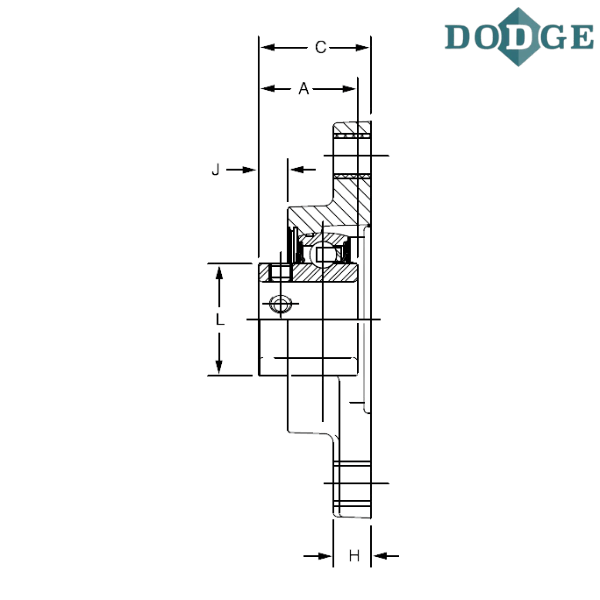

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 179.6
Thickness (C) mm - 52.8
Bolt Center to Center Length (D) mm - 148.5
F-Bolt Diameter - M14
H (mm) - 18.3
J (mm) - 15.7
L (mm) - 56.4
Overall Width (M) mm - 109.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
