127548 DODGE - P2B-SCEZ-35M-PCR

Brand - DODGE
Item Number - 127548 DODGE - P2B-SCEZ-35M-PCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-SCEZ-35M-PCR
Description (Standard Insert With Flingers) - P2B-SCEZ-35M-P
Weight (kg) - 0.74

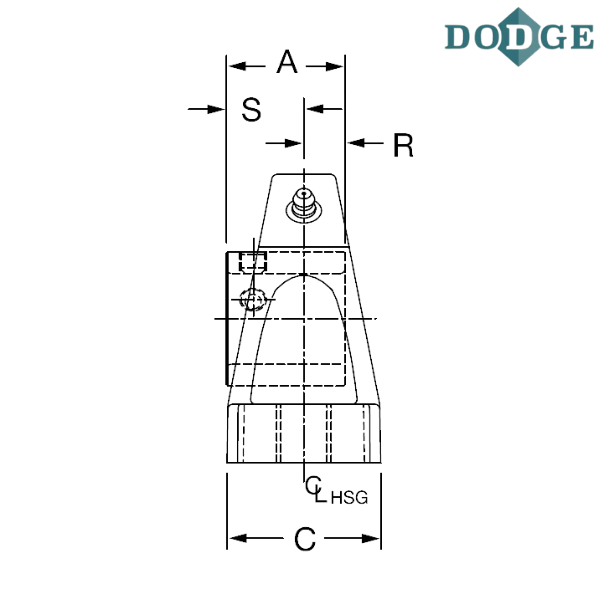

Length Through Bore (A) mm - 43.4
Overall Length (B) mm - 166.1
Width (C) mm - 47.2
Bolt to Bolt Minimum Distance (D min) mm - 121.9
Bolt to Bolt Maximum Distance (D max) mm - 130
F-Bolt Diameter - M12
G (mm) - 18.5
H (mm) - 18.3
Overall Height (J) mm - 98.8
L (mm) - 46.7
Base to Center Height (M) mm - 47.6
R (mm) - 17
S (mm) - 26.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
