Description
Brand - DODGE
Item Number - 127547 DODGE - P2B-SCUEZ-30M-PCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - P2B-SCUEZ-30M-PCR
Description (Standard Insert With Flingers) - P2B-SCUEZ-30M-P
Weight (kg) - 0.51

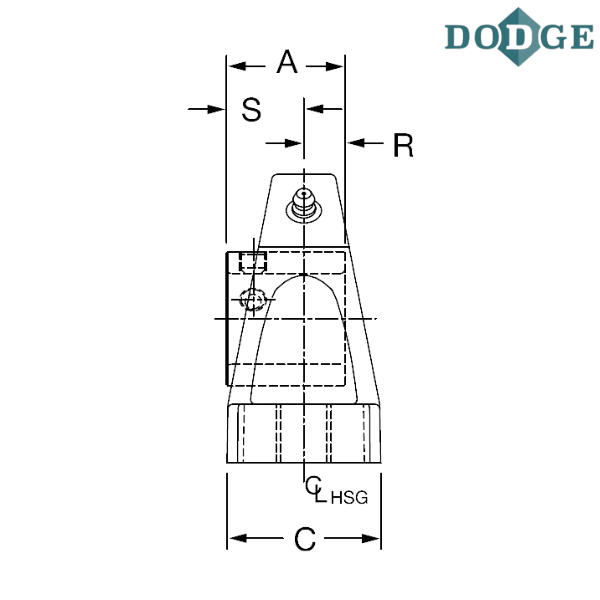

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 160
Width (C) mm - 45
Bolt to Bolt Minimum Distance (D min) mm - 116.8
Bolt to Bolt Maximum Distance (D max) mm - 124
F-Bolt Diameter - M12
G (mm) - 18.5
H (mm) - 17.8
Overall Height (J) mm - 84.8
L (mm) - 39.9
Base to Center Height (M) mm - 42.9
R (mm) - 14.7
S (mm) - 23.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
UEZ - higher back pillow block, E-Z KLEEN/ULTRA KLEEN (for interchangeability with competitive pillow blocks)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert
** Images are for representation purposes only
