Description
Brand - DODGE
Item Number - 126653 DODGE - FC-DL-30M
Category - D-LOK® Ball Bearings (DL Normal Duty Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - FC-DL-30M
Weight (lbs) - 1.4

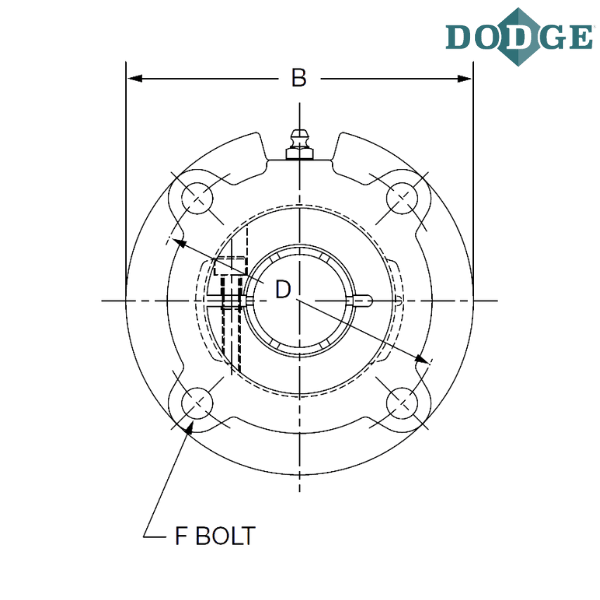

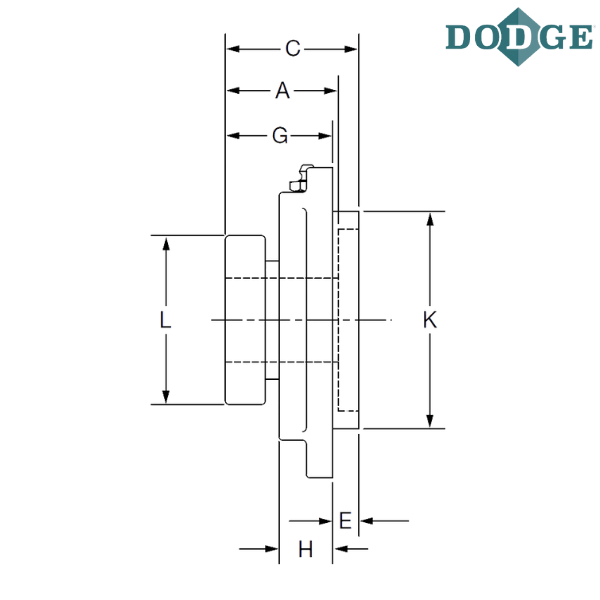

Length Through Bore (A) mm - 39.6
Overall Length (B) mm - 111.3
Thickness (C) mm - 39.9
Bolt Circle (D) mm - 92.2
Pilot Depth (E) mm - 6.4
F-Bolt Diameter - M10
G (mm) - 33.5
H (mm) - 20.6
Pilot Diameter (K) mm - 76.20/76.15
L (mm) - 56.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

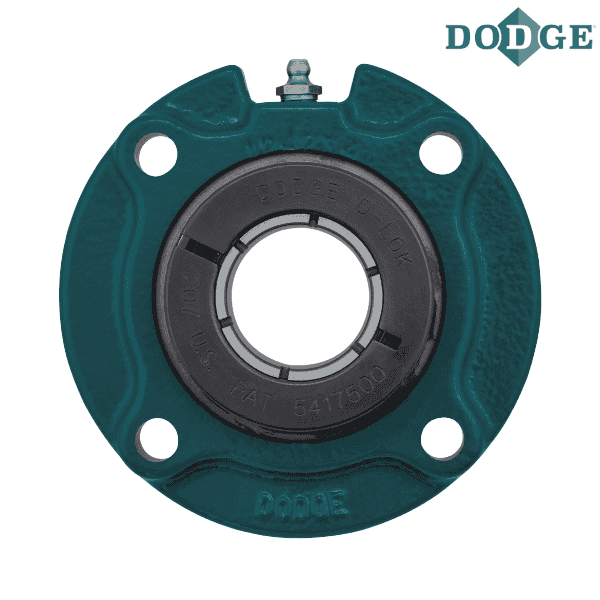

** Images are for representation purposes only
