Description
Brand - DODGE
Item Number - 126616 DODGE - F2B-DL-45M
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - F2B-DL-45M
Description (No Lube/Sealed for Life) - F2B-DL-45M-NL
Weight (kg) - 2.4

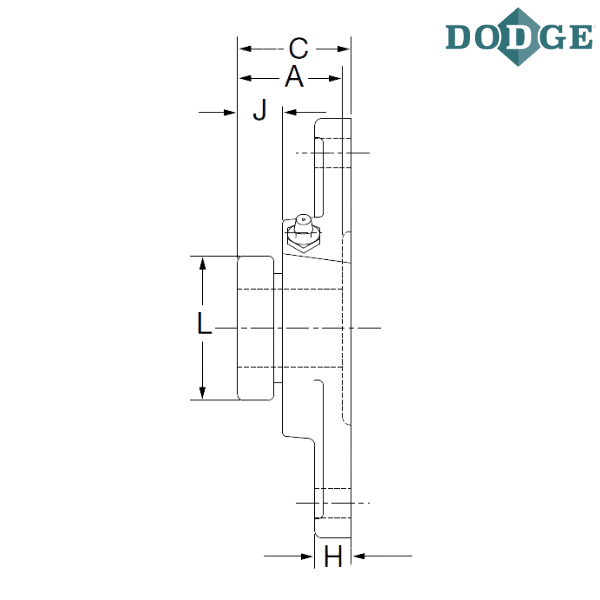

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 179.3
Thickness (C) mm - 52.3
Bolt Center to Center Length (D) mm - 148.3
F-Bolt Diameter - M14
H (mm) - 16
J (mm) - 16.8
L (mm) - 75.9
Overall Width (M) mm - 111.3
N (mm) - 48.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric
** Images are for representation purposes only
