126612 DODGE - F2B-DL-25M

Brand - DODGE
Item Number - 126612 DODGE - F2B-DL-25M
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F2B-DL-25M
Part Number (No Lube/Sealed for Life) - 059680
Description (No Lube/Sealed for Life) - F2B-DL-25M-NL
Weight (kg) - 0.8

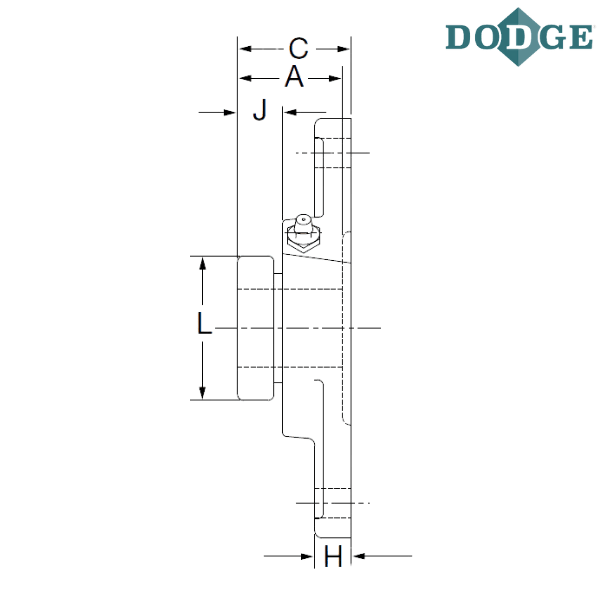

Length Through Bore (A) mm - 36.6
Overall Length (B) mm - 124
Thickness (C) mm - 37.3
Bolt Center to Center Length (D) mm - 98.8
F-Bolt Diameter - M10
H (mm) - 13.2
J (mm) - 13
L (mm) - 50.5
Overall Width (M) mm - 69.9
N (mm) - 36.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
