126611 DODGE - F2B-DL-20M

Brand - DODGE
Item Number - 126611 DODGE - F2B-DL-20M
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2B-DL-20M
Part Number (No Lube/Sealed for Life) - 065632
Description (No Lube/Sealed for Life) - F2B-DL-20M-NL
Weight (kg) - 0.6

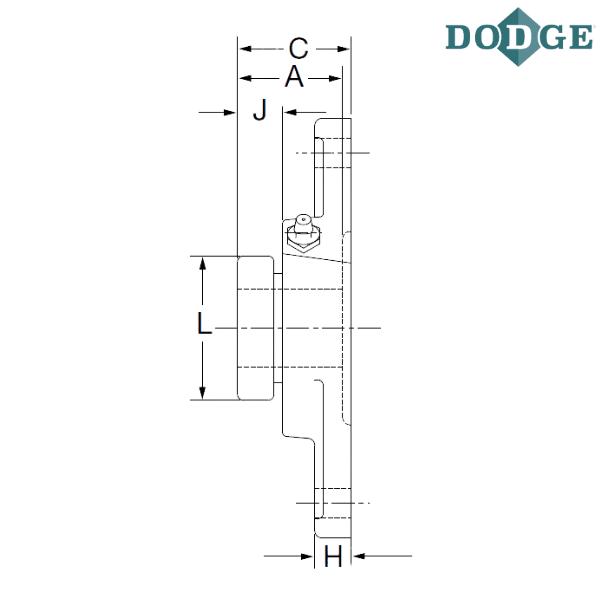

Length Through Bore (A) mm - 32.5
Overall Length (B) mm - 112
Thickness (C) mm - 35.3
Bolt Center to Center Length (D) mm - 89.7
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 10.4
L (mm) - 43.4
Overall Width (M) mm - 60.5
N (mm) - 38.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
