126604 DODGE - P2B-DL-35M

Brand - DODGE
Item Number - 126604 DODGE - P2B-DL-35M
Category - D-LOK® Ball Bearings (DL Normal Duty Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-DL-35M
Weight (kg) - 2.2

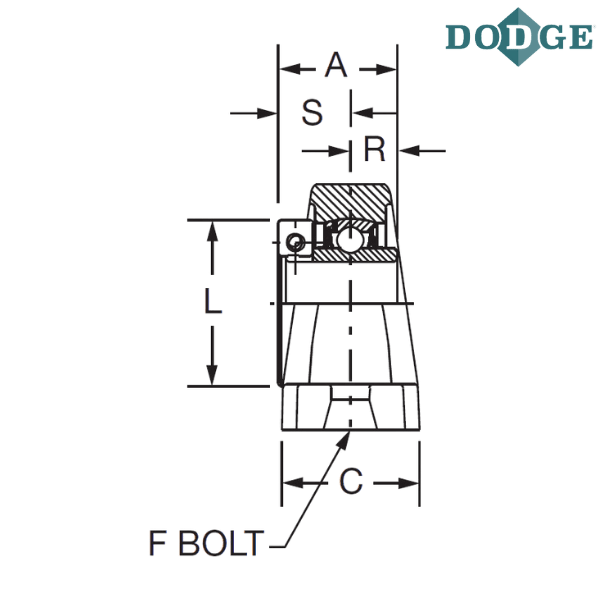

Length Through Bore (A) mm - 44.45
Overall Length (B) mm - 165.1
Width (C) mm - 44.45
Bolt to Bolt Minimum Distance (D min) mm - 118.87
Bolt to Bolt Maximum Distance (D max) mm - 138.18
F-Bolt Diameter - M12
G (mm) - 23.88
H (mm) - 18.03
Overall Height (J) mm - 95.25
L (mm) - 68.33
Base to Center Height (M) mm - 47.6
R (mm) - 17.02
S (mm) - 27.43

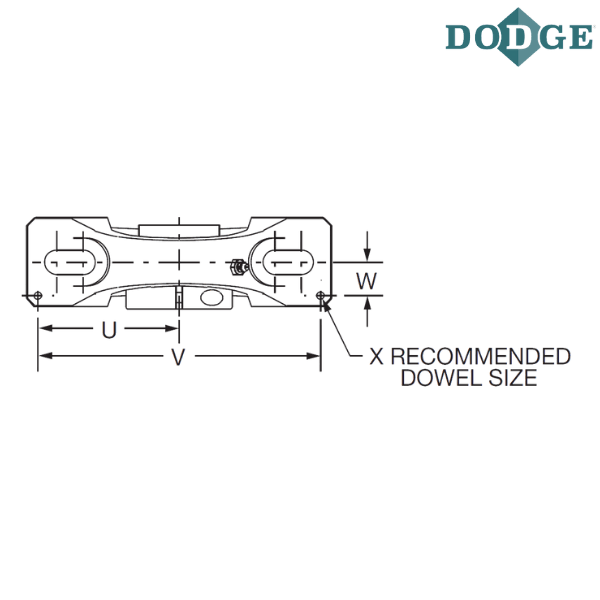

U (mm) - 73.91
V (mm) - 147.83
W (mm) - 14.22
X (mm) - 3.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
