126418 DODGE - P2B-SXRH-203-E

Brand - DODGE
Item Number - 126418 DODGE - P2B-SXRH-203-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 211
Shaft Size (inch) - 2.1875
Description - P2B-SXRH-203-E
Part Number (Non-Expansion) - 129225
Description (Non-Expansion) - P2B-GTM-203
Weight (lbs) - 16.3

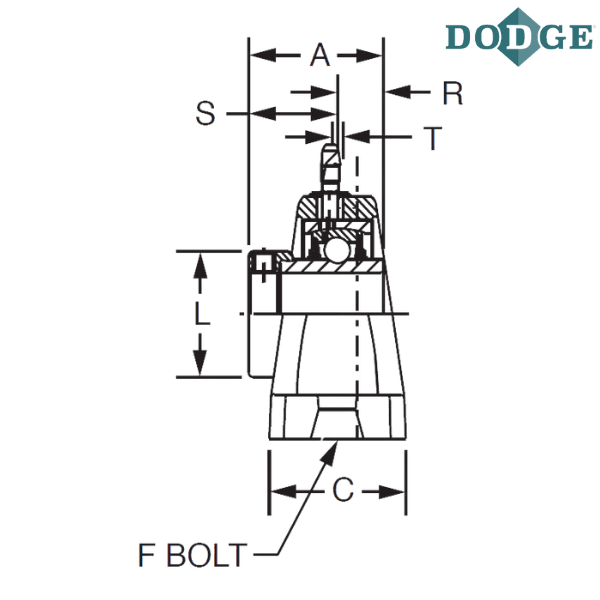

Length Through Bore (A) inch - 2.59
Overall Length (B) inch - 9.5
Width (C) inch - 2.37
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.94
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21
H (inch) - 0.88
Overall Height (J) inch - 5.4
L (inch) - 3
M (inch) - 2.75
R (inch) - 0.88
S (inch) - 1.71
Total Expansion (T) inch - 0.22

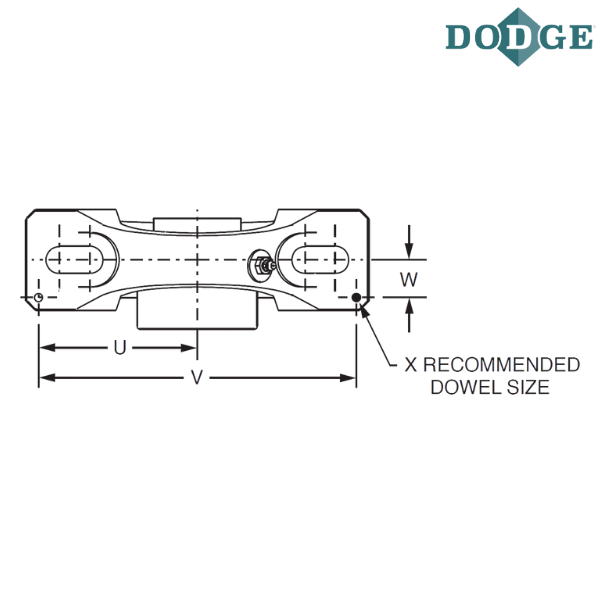

U (inch) - 4.25
V (inch) - 8.5
W (inch) - 0.88
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
E - Expansion

** Images are for representation purposes only
