126408 DODGE - P2B-SCH-203-E


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 126408 DODGE - P2B-SCH-203-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Pillow Blocks)
Series - 211
Shaft Size (inch) - 2.1875
Description - P2B-SCH-203-E
Part Number (Non-Expansion) - 126816
Description (Non-Expansion) - P2B-SCM-203
Weight (lbs) - 14.3

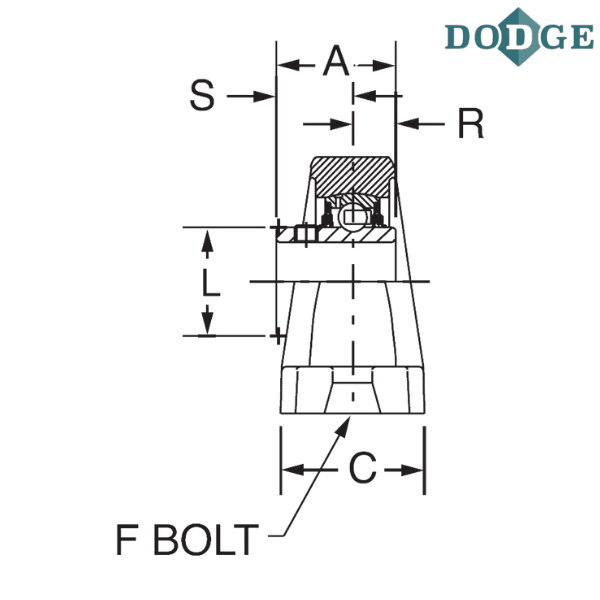

Length Through Bore (A) inch - 2.22
Overall Length (B) inch - 9.5
Width (C) inch - 2.37
Bolt to Bolt Minimum Distance (D min) mm - 6.88
Bolt to Bolt Maximum Distance (D max) mm - 7.94
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21
H (inch) - 0.88
Overall Height (J) inch - 5.4
L (inch) - 2.71
Base to Center Height (M) inch - 2.75
R (inch) - 0.87
S (inch) - 1.35
Total Expansion (T) inch - 0.22

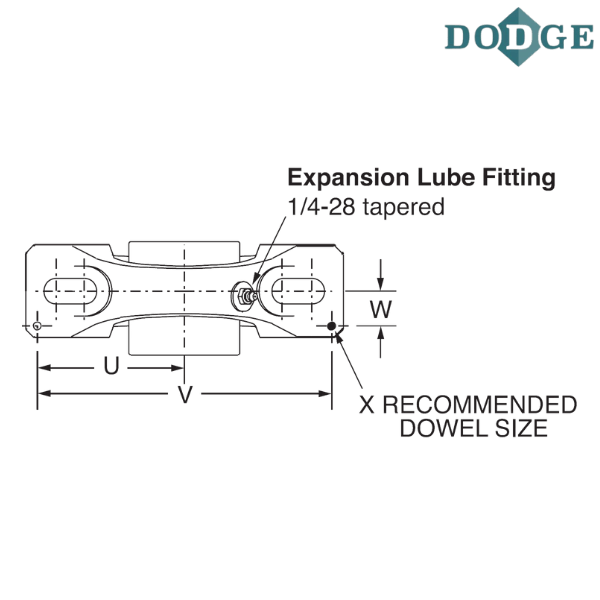

U (inch) - 4.25
V (inch) - 8.5
W (inch) - 0.88
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
E - Expansion

** Images are for representation purposes only
