126407 DODGE - P2B-SCH-115-E

Brand - DODGE
Item Number - 126407 DODGE - P2B-SCH-115-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Pillow Blocks)
Series - 210
Shaft Size (inch) - 1.9375
Description - P2B-SCH-115-E
Part Number (Non-Expansion) - 126814
Description (Non-Expansion) - P2B-SCM-115
Weight (lbs) - 9.8

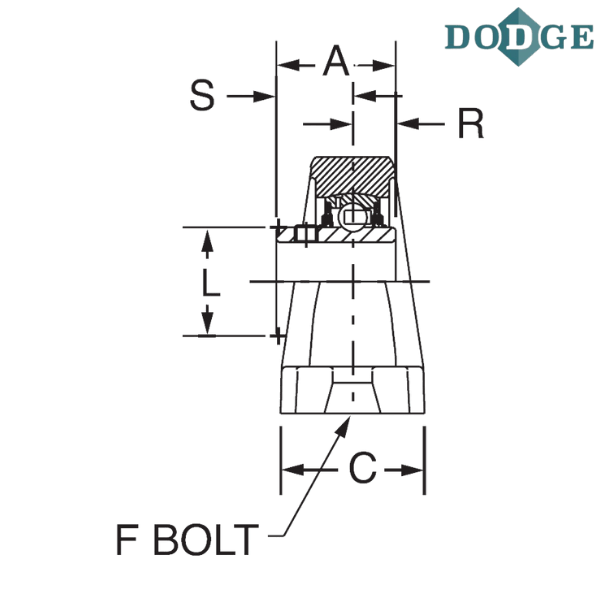

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 8.88
Width (C) inch - 2.3
Bolt to Bolt Minimum Distance (D min) mm - 6.38
Bolt to Bolt Maximum Distance (D max) mm - 7.44
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21
H (inch) - 0.88
Overall Height (J) inch - 4.96
L (inch) - 2.43
Base to Center Height (M) inch - 2.5
R (inch) - 0.75
S (inch) - 1.19
Total Expansion (T) inch - 0.22

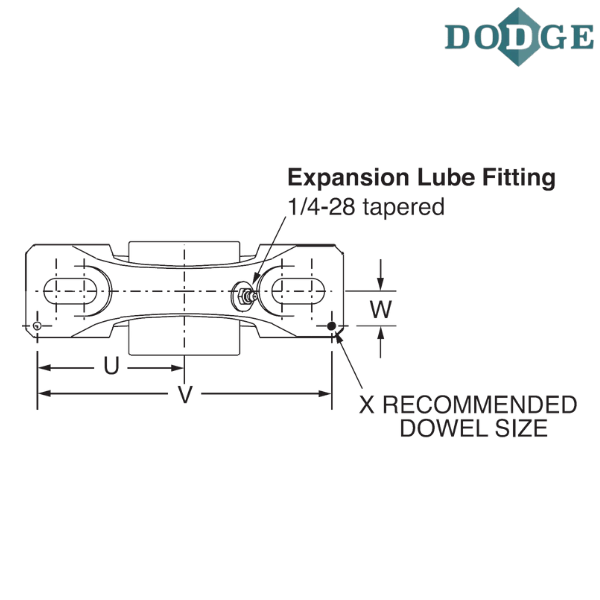

U (inch) - 3.94
V (inch) - 7.88
W (inch) - 0.81
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
E - Expansion

** Images are for representation purposes only
