126285 DODGE - F2B-SCM-103


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 126285 DODGE - F2B-SCM-103
Category - Setscrew Ball Bearings (SCM Medium Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.1875
Description - F2B-SCM-103
Description (Sealed for Life) - F2B-SCM-103-NL
Weight (lbs) - 3.6

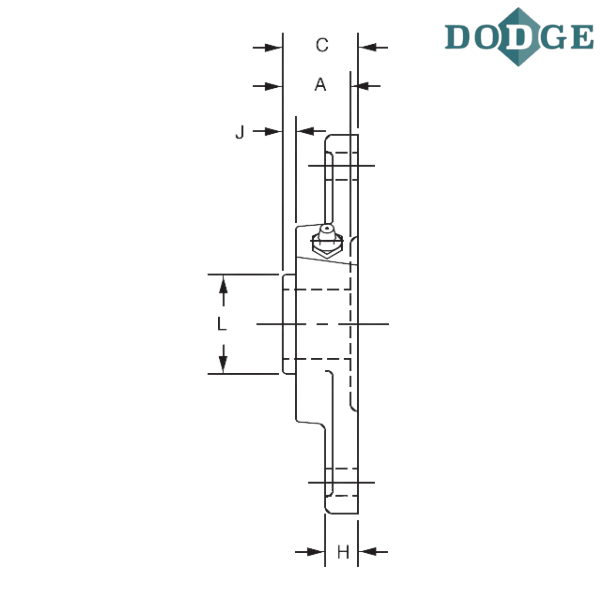

Length Through Bore (A) inch - 1.71
Overall Length (B) inch - 6.13
Thickness (C) inch - 1.75
Bolt Center to Center Length (D) inch - 5.12
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.53
L (inch) - 1.84
Overall Width (M) inch - 3.75
N (inch) - 1.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SCM - Wide inner ring, medium duty, 65° setscrew locking

** Images are for representation purposes only
