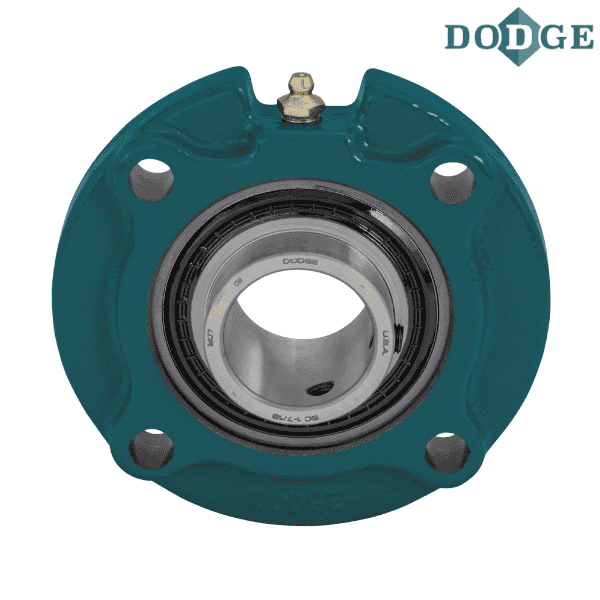

126180 DODGE - FC-SCM-215


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 126180 DODGE - FC-SCM-215
Category - Setscrew Ball Bearings (SCM Medium Duty Piloted Flange Bearings)
Series - 216
Shaft Size (inch) - 2.9375
Description - FC-SCM-215
Weight (lbs) - 18.8

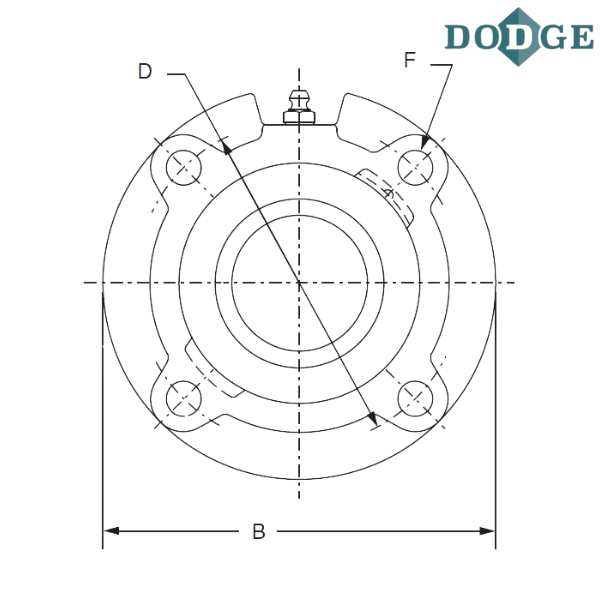

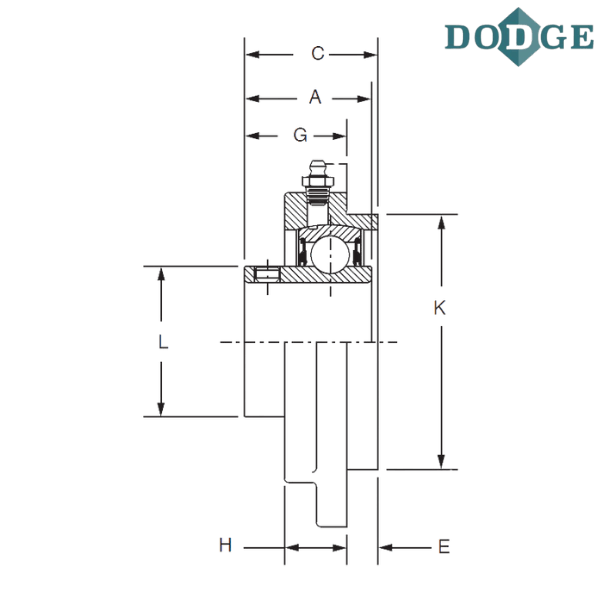

Length Through Bore (A) inch - 2.38
Overall Width (B) inch - 8.75
Thickness (C) inch - 3.02
Bolt Circle (D) inch - 7.5
E (inch) - 1.25
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.77
H (inch) - 1.19
K (inch) - 6.375/6.373
L (inch) - 3.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SCM - Wide inner ring, medium duty, 65° setscrew locking

** Images are for representation purposes only
