126178 DODGE - FC-SCM-207


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 126178 DODGE - FC-SCM-207
Category - Setscrew Ball Bearings (SCM Medium Duty Piloted Flange Bearings)
Series - 214
Shaft Size (inch) - 2.4375
Description - FC-SCM-207
Weight (lbs) - 13.2

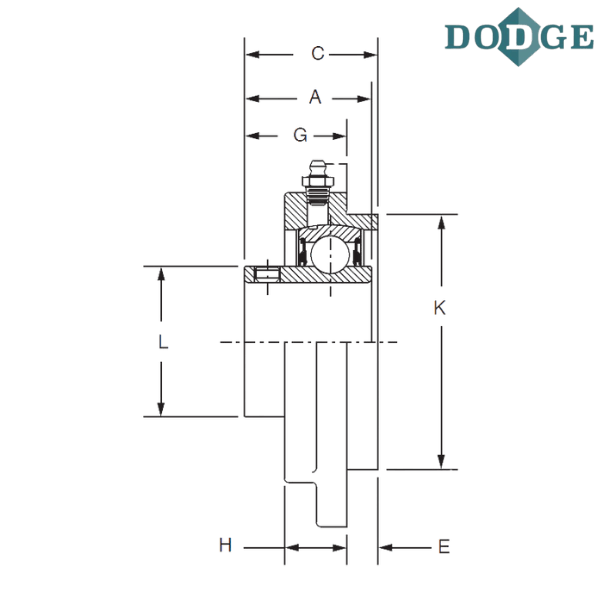

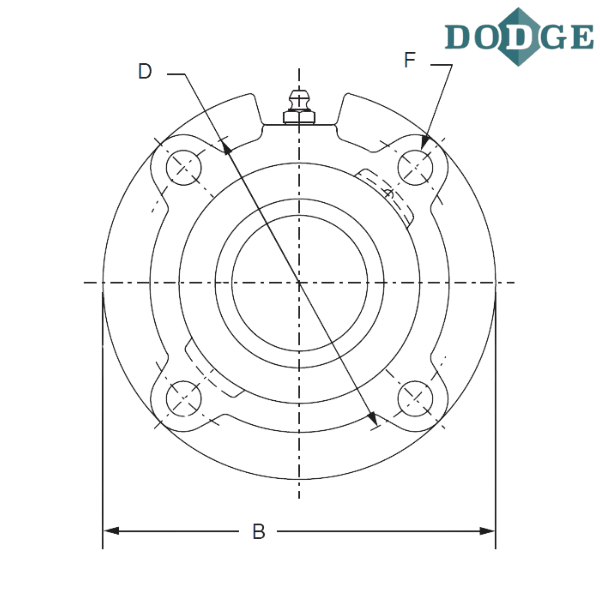

Length Through Bore (A) inch - 2.54
Overall Width (B) inch - 7.63
Thickness (C) inch - 2.8
Bolt Circle (D) inch - 6.5
E (inch) - 1.13
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.67
H (inch) - 1.06
K (inch) - 5.500/5.498
L (inch) - 3.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SCM - Wide inner ring, medium duty, 65° setscrew locking
