Description
Brand - NILOS
Item Number - 126 JV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 8.2 mm
Dimension (c) - 15 mm
Outer Diamter (D) - 19 mm
Width (h) - 1.8 mm
Material Thickness (s) - 0.3 mm

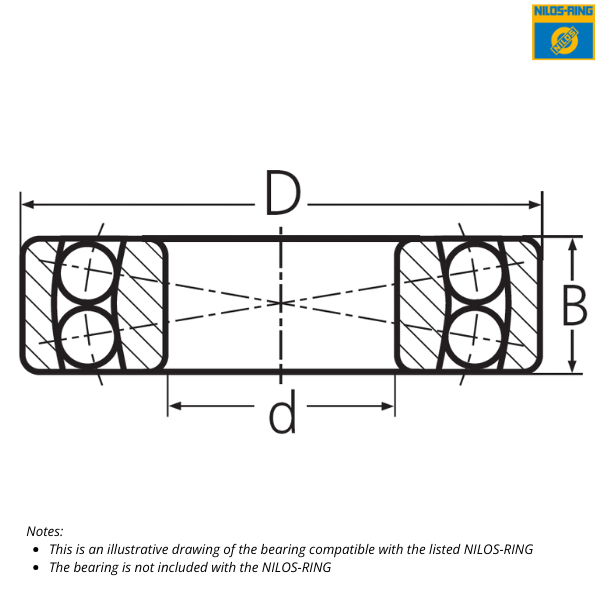

Description of Compatible Bearing (100 Series) :
Bearing Part Number - 126
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 6 mm
Outer Diameter (D) - 19 mm
Width (B) - 6 mm
♦ ♦ Images are for representation purposes only
Item Number - 126 JV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 8.2 mm
Dimension (c) - 15 mm
Outer Diamter (D) - 19 mm
Width (h) - 1.8 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (100 Series) :
Bearing Part Number - 126
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 6 mm
Outer Diameter (D) - 19 mm
Width (B) - 6 mm
♦ ♦ Images are for representation purposes only
