125996 DODGE - WSTU-SCM-65M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125996 DODGE - WSTU-SCM-65M
Category - Setscrew Ball Bearings (SCM Medium Duty Wide Slot Take-Up Bearings)
Series - 214
Shaft Size (mm) - 65
Description - WSTU-SCM-65M
Weight (kg) - 8.1
Take-Up Frame Number Reference - WS515

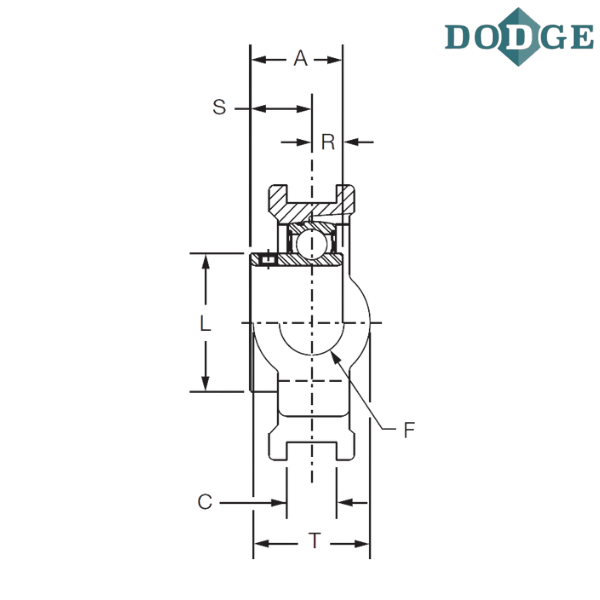

Length Through Bore (A) mm - 64.5
Overall Length (B) mm - 217.4
C (mm) - 27
D (mm) - 120.7
E (mm) - 136.7
F (Screw Diameter) mm - 38.1
G (mm) - 20.6
H (mm) - 31.8
J (mm) - 111.3
K (mm) - 69.9
L (mm) - 84.1
M (mm) - 150.44/151.21
N (mm) - 166.6
R (mm) - 26.9
S (mm) - 37.6
T (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
