125991 DODGE - WSTU-SCM-35M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125991 DODGE - WSTU-SCM-35M
Category - Setscrew Ball Bearings (SCM Medium Duty Wide Slot Take-Up Bearings)
Series - 208
Shaft Size (mm) - 35
Description - WSTU-SCM-35M
Weight (kg) - 2.9
Take-Up Frame Number Reference - WS400

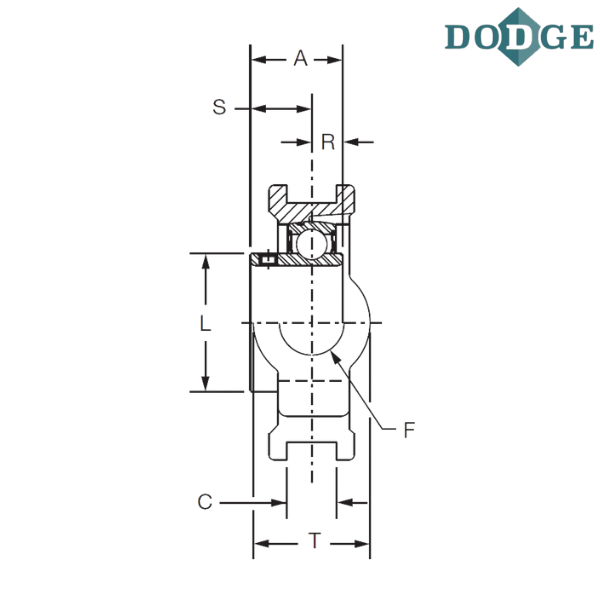

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 144.5
C (mm) - 17.48
D (mm) - 82.6
E (mm) - 88.9
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 52.1
M (mm) - 101.22/101.98
N (mm) - 114.3
R (mm) - 19.1
S (mm) - 30.2
T (mm) - 49.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
