Description
Brand - DODGE
Item Number - 125980 DODGE - NSTU-SCM-25M
Category - Setscrew Ball Bearings (SCM Medium Duty Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (mm) - 25
Description - NSTU-SCM-25M
Weight (kg) - 1.2
Take-Up Frame Number Reference - NS308

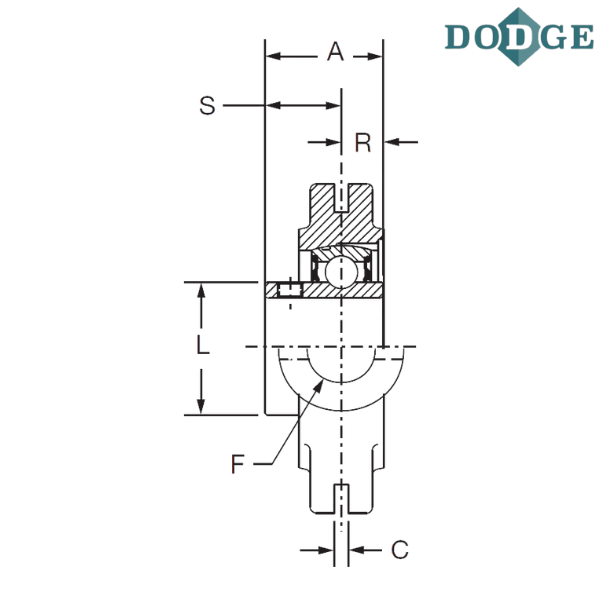

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 109.5
C (mm) - 6.35
D (mm) - 63.5
E (mm) - 68.3
F-Bolt Diameter - 19.1
G (mm) - 12.7
H (mm) - 23.9
J (mm) - 35.1
L (mm) - 39.9
M (mm) - 89.15/88.39
Overall Width (N) mm - 104.9
Pin Diameter (P) mm - 8.1
R (mm) - 14.7
S (mm) - 23.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
