125948 DODGE - FC-SCM-75M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125948 DODGE - FC-SCM-75M
Category - Setscrew Ball Bearings (SCM Medium Duty Piloted Flange Bearings)
Series - 216
Shaft Size (mm) - 75
Description - FC-SCM-75M
Weight (kg) - 8.5

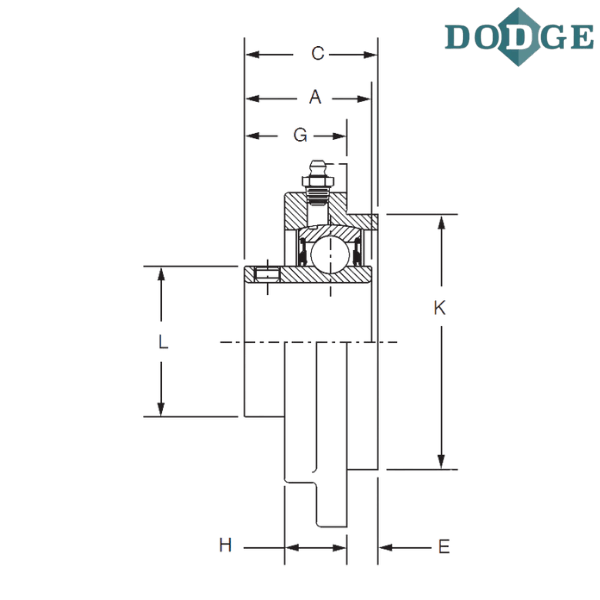

Length Through Bore (A) mm - 60.5

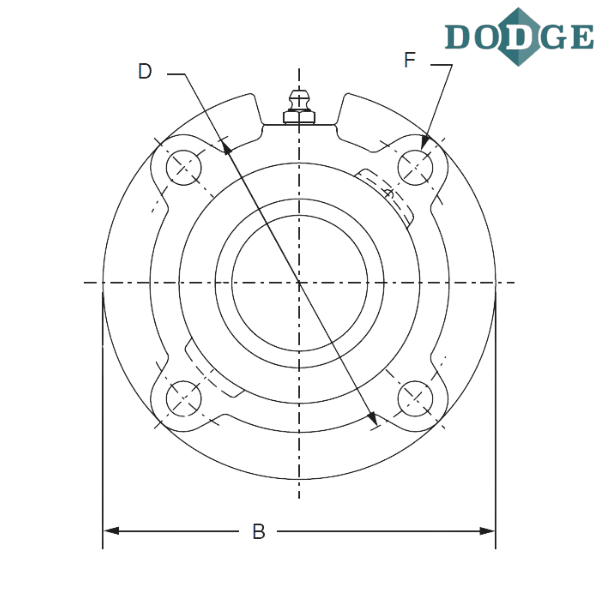

Overall Width (B) mm - 222.3
Thickness (C) mm - 76.7
Bolt Circle (D) mm - 190.5
E (mm) - 31.8
F-Bolt Diameter - M16
G (mm) - 45
H (mm) - 30.2
K (mm) - 161.93/161.87
L (mm) - 97.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric

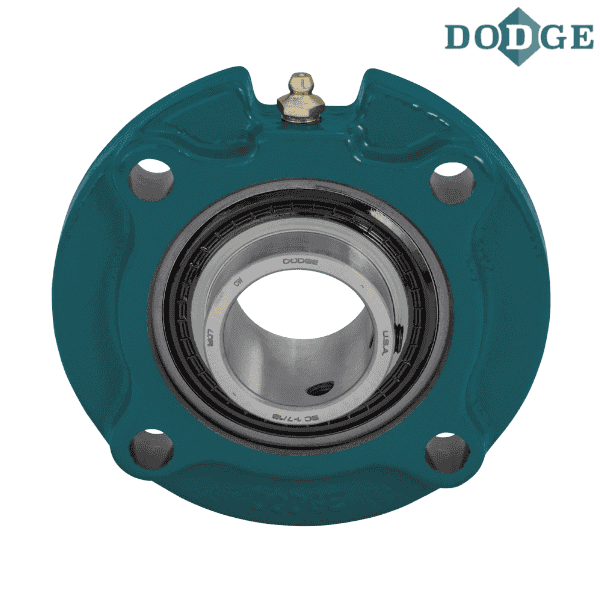

** Images are for representation purposes only
