125945 DODGE - FC-SCM-50M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125945 DODGE - FC-SCM-50M
Category - Setscrew Ball Bearings (SCM Medium Duty Piloted Flange Bearings)
Series - 211
Shaft Size (mm) - 50
Description - FC-SCM-50M
Weight (kg) - 3.4

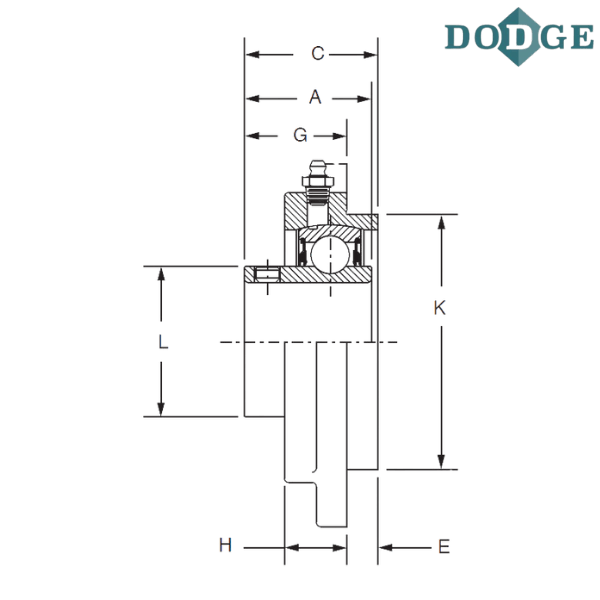

Length Through Bore (A) mm - 56.4

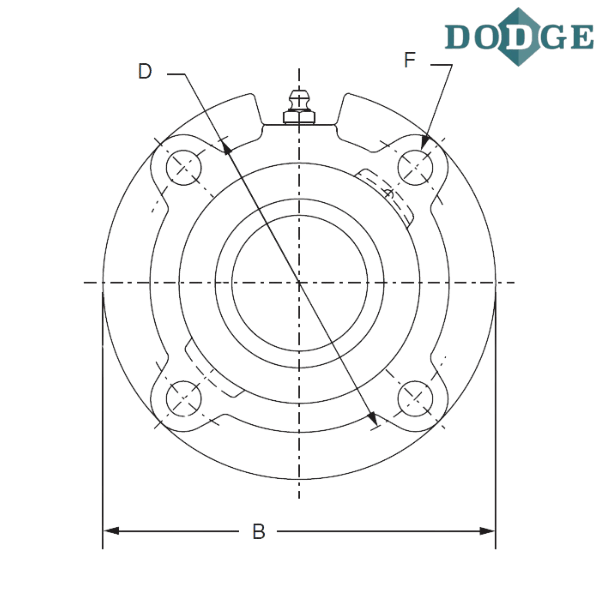

Overall Width (B) mm - 162.1
Thickness (C) mm - 59.7
Bolt Circle (D) mm - 136.7
E (mm) - 16
F-Bolt Diameter - M12
G (mm) - 43.7
H (mm) - 25.4
K (mm) - 114.30/114.25
L (mm) - 68.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric

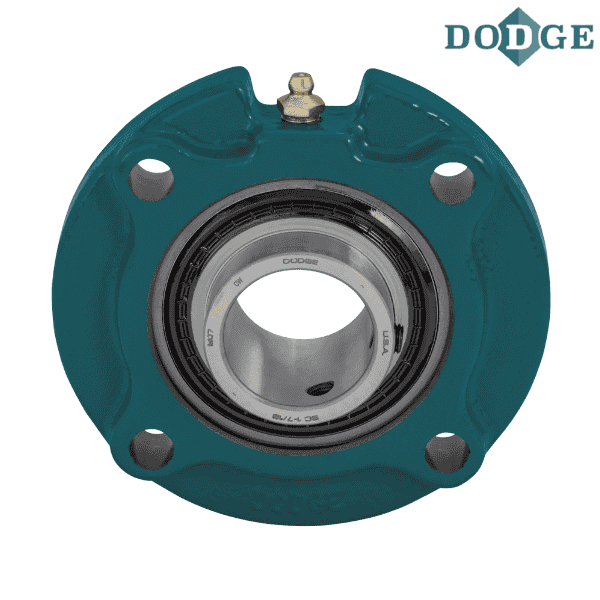

** Images are for representation purposes only
