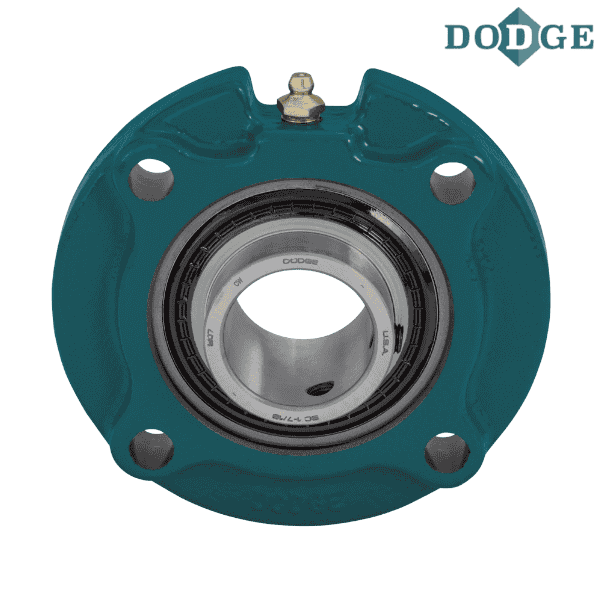

125940 DODGE - FC-SCM-25M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125940 DODGE - FC-SCM-25M
Category - Setscrew Ball Bearings (SCM Medium Duty Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 25
Description - FC-SCM-25M
Weight (kg) - 1.4

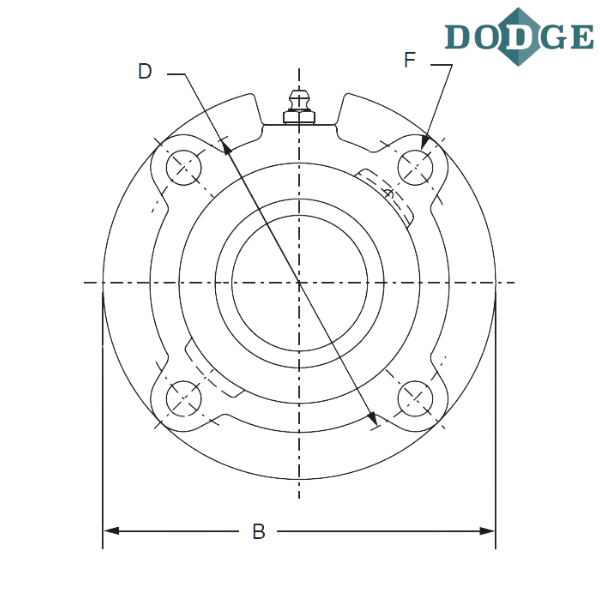

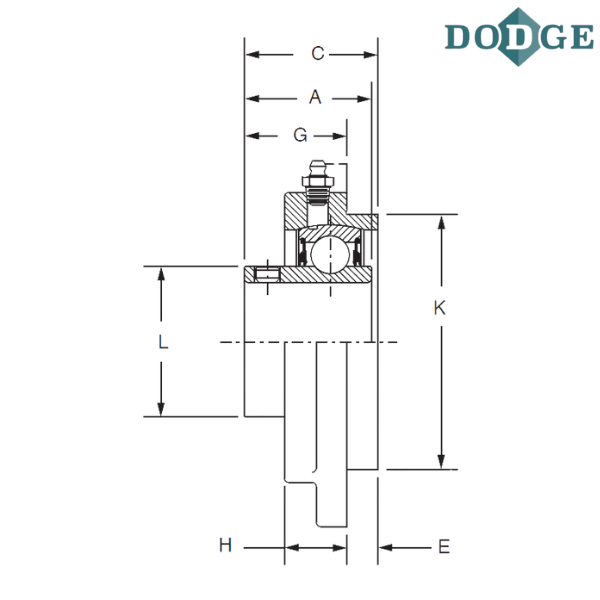

Length Through Bore (A) mm - 38.6
Overall Width (B) mm - 111.3
Thickness (C) mm - 38.9
Bolt Circle (D) mm - 92.2
E (mm) - 6.4
F-Bolt Diameter - M10
G (mm) - 32.5
H (mm) - 20.6
K (mm) - 76.20/76.15
L (mm) - 39.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
