125928 DODGE - P2B-SCM-40M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125928 DODGE - P2B-SCM-40M
Category - Setscrew Ball Bearings (SCM Medium Duty Pillow Blocks)
Series - 209
Shaft Size (mm) - 40
Description - P2B-SCM-40M
Description (No-Lube/Seal for Life) - P2B-SCM-40M-NL
Weight (kg) - 2.7

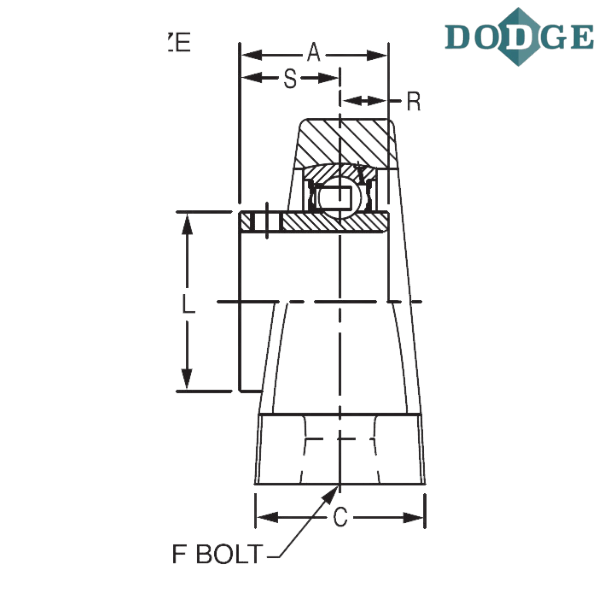

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 189
Width (C) mm - 50.8
Bolt to Bolt Minimum Distance (D min) mm - 139.7
Bolt to Bolt Maximum Distance (D max) mm - 157.2
F-Bolt Diameter - M12
G (mm) - 22.9
H (mm) - 19.1
Overall Height (J) mm - 108.7
L (mm) - 56.4
Base to Center Height (M) mm - 54
R (mm) - 19.1
S (mm) - 30.2

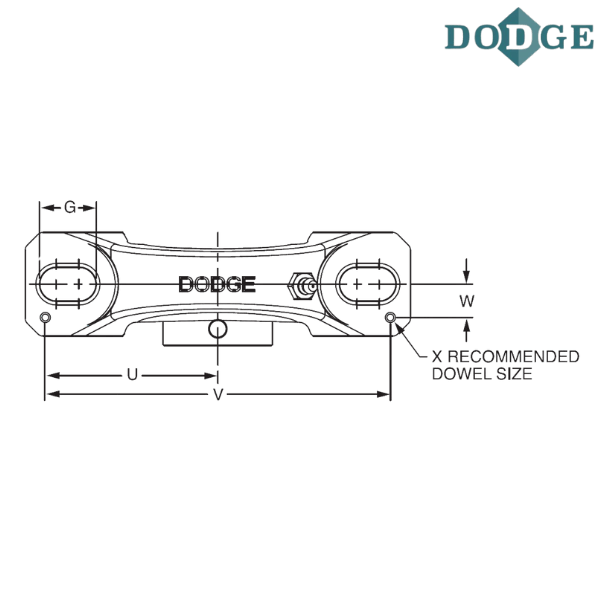

U (mm) - 85.9
V (mm) - 171.7
W (mm) - 17.5
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
