125887 DODGE - F4B-SC-25M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125887 DODGE - F4B-SC-25M
Category - Setscrew Ball Bearings (SC Normal Duty 4-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F4B-SC-25M
Part Number (No-Lube/Seal for Life) - 064943
Description (No-Lube/Seal for Life) - F4B-SC-25M-NL
Weight (kg) - 0.9

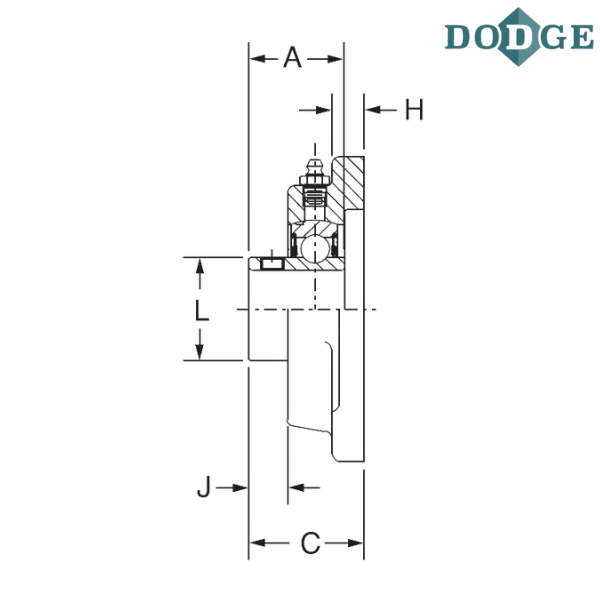

Length Through Bore (A) mm - 34
Overall Length (B) mm - 95.3
Thickness (C) mm - 34.8
Bolt Center to Center Length (D) mm - 69.9
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 10.7
L (mm) - 33.5
N (mm) - 52.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking

** Images are for representation purposes only
