Description
Brand - DODGE
Item Number - 125880 DODGE - F2B-SC-40M
Category - Setscrew Ball Bearings (SC Normal Duty 2-Bolt Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F2B-SC-40M
Description (No-Lube/Seal for Life) - F2B-SC-40M-NL
Weight (kg) - 1.8

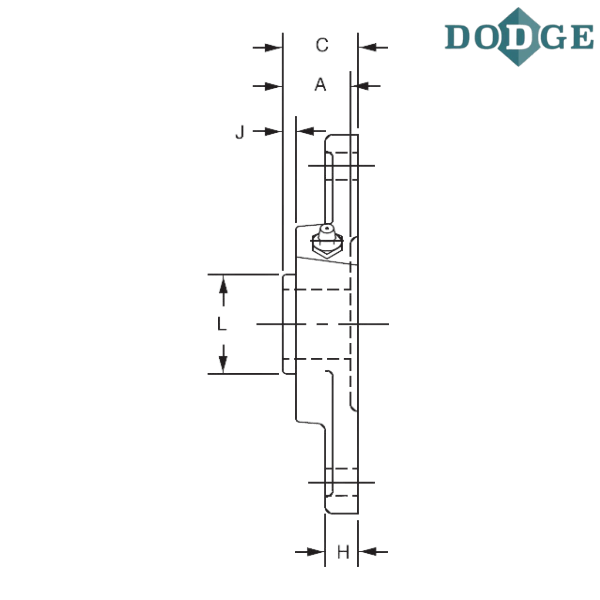

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 171.5
Thickness (C) mm - 50
Bolt Center to Center Length (D) mm - 143.8
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 16
L (mm) - 52.1
Overall Width (M) mm - 104.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
