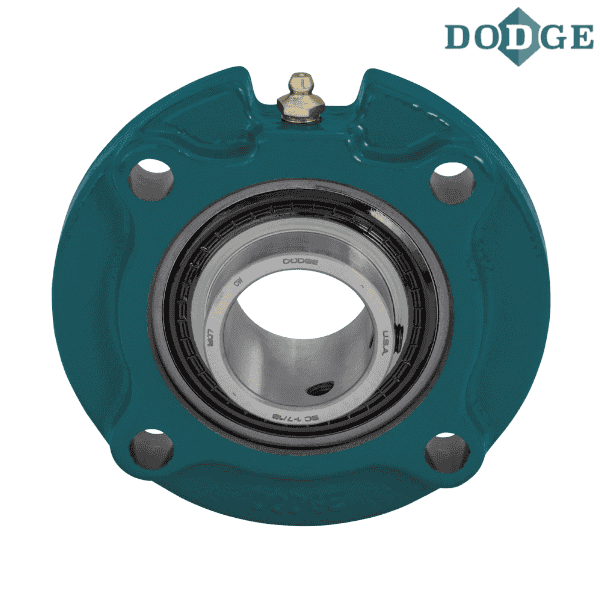

125872 DODGE - FC-SC-70M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125872 DODGE - FC-SC-70M
Category - Setscrew Ball Bearings (SC Normal Duty Piloted Flange Bearings)
Series - 214
Shaft Size (mm) - 70
Description - FC-SC-70M
Weight (kg) - 5.5

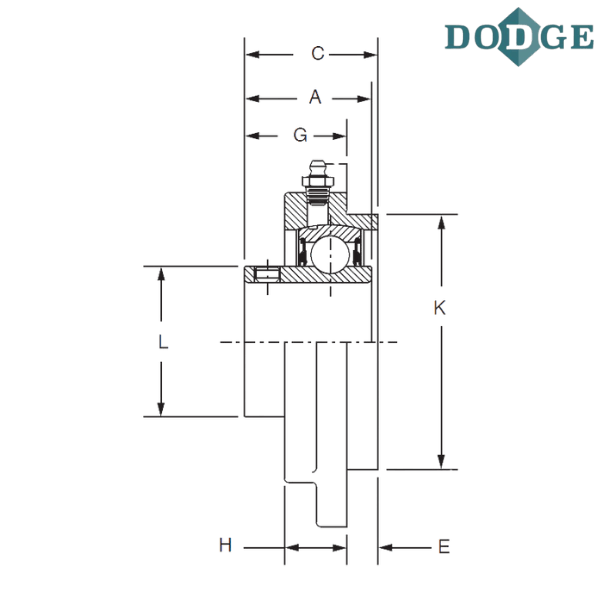

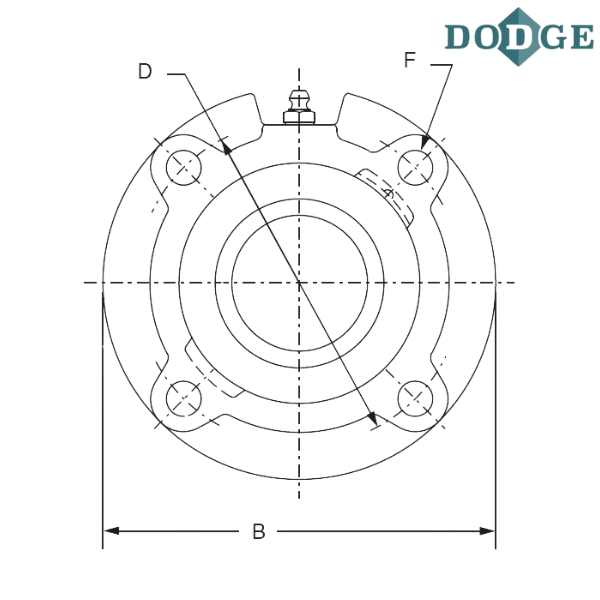

Length Through Bore (A) mm - 64.5
Overall Width (B) mm - 193.8
Thickness (C) mm - 71.1
Bolt Circle (D) mm - 165.1
E (mm) - 28.7
F-Bolt Diameter - M12
G (mm) - 42.4
H (mm) - 26.9
K (mm) - 139.70/139.65
L (mm) - 84.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
