Description
Brand - DODGE
Item Number - 125869 DODGE - FC-SC-50M
Category - Setscrew Ball Bearings (SC Normal Duty Piloted Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - FC-SC-50M
Weight (kg) - 2.9

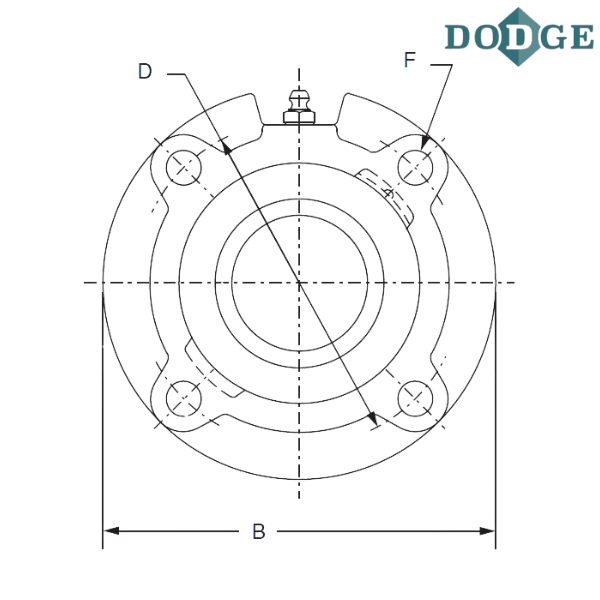

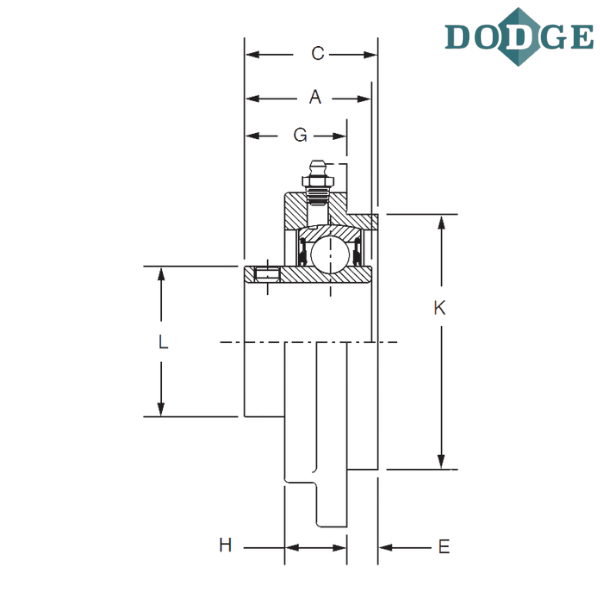

Length Through Bore (A) mm - 49.3
Overall Width (B) mm - 155.7
Thickness (C) mm - 50.3
Bolt Circle (D) mm - 130.3
E (mm) - 11.9
F-Bolt Diameter - M12
G (mm) - 38.4
H (mm) - 23.4
K (mm) - 107.95/107.90
L (mm) - 61.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

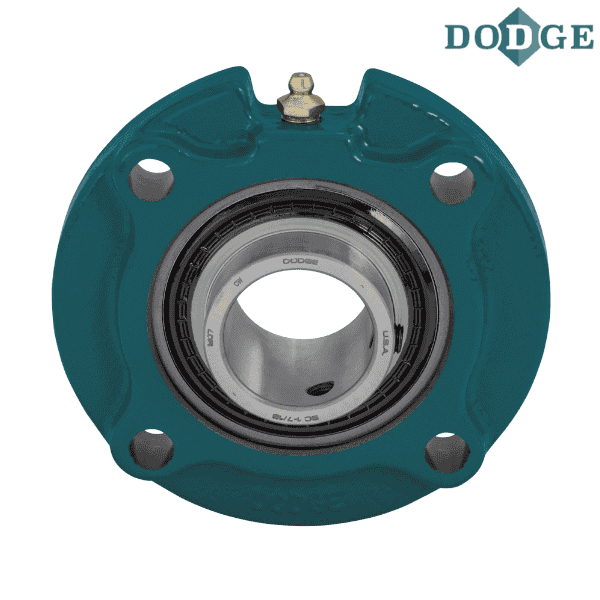

** Images are for representation purposes only
