125851 DODGE - P2B-SC-20M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125851 DODGE - P2B-SC-20M
Category - Setscrew Ball Bearings (SC and SCU Normal Duty Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - P2B-SC-20M
Description (No-Lube/Seal for Life) - P2B-SC-20M-NL
Weight (kg) - 0.7

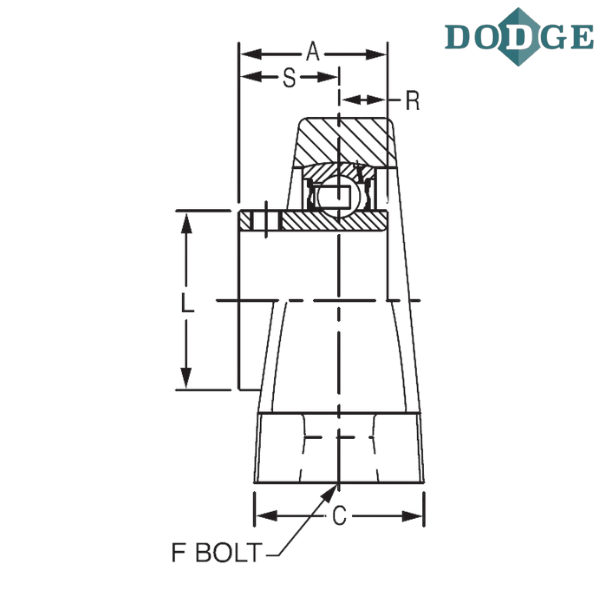

Length Through Bore (A) mm - 31.2
Overall Length (B) mm - 133.4
Width (C) mm - 34
Bolt to Bolt Minimum Distance (D min) mm - 85.9
Bolt to Bolt Maximum Distance (D max) mm - 106.4
F-Bolt Diameter - M10
G (mm) - 21.6
H (mm) - 13.5
Overall Height (J) mm - 65
L (mm) - 28.4
Base to Center Height (M) mm - 33.3
R (mm) - 12.7
S (mm) - 18.5

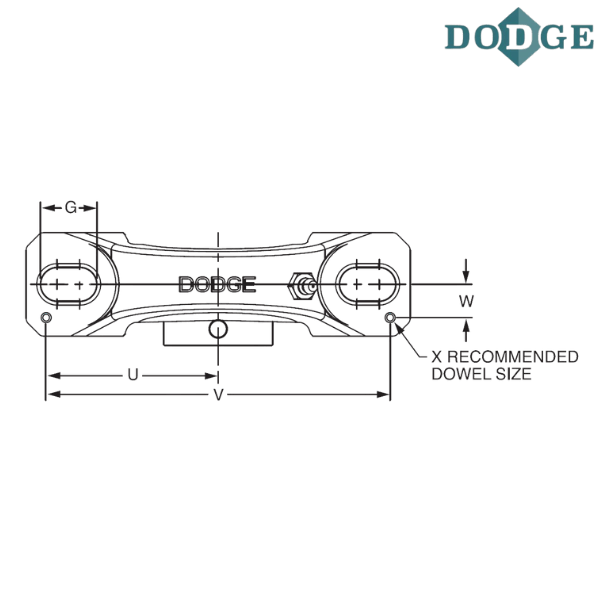

U (mm) - 57.2
V (mm) - 114.3
W (mm) - 12.7
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
