125737 DODGE - F2B-SXV-55M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125737 DODGE - F2B-SXV-55M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (mm) - 55
Description - F2B-SXV-55M
Description (No-Lube/Sealed for Life) - F2B-SXV-55M-NL
Weight (kg) - 3.1

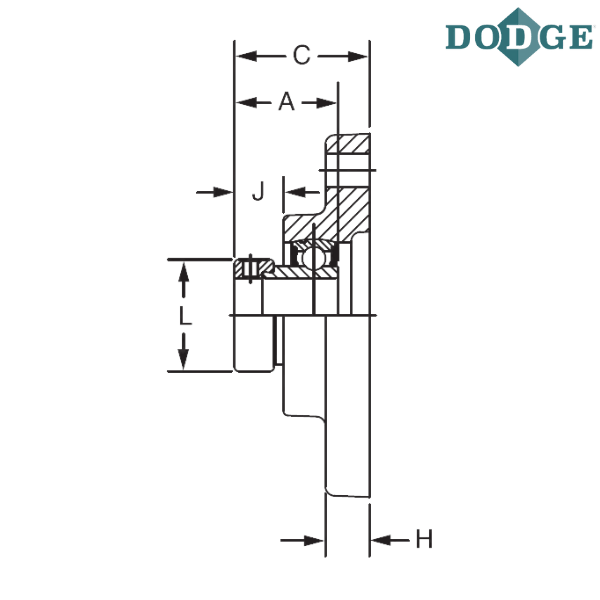

Length Through Bore (A) mm - 48.3
Overall Length (B) mm - 219.2
Thickness (C) mm - 59.9
Bolt Center to Center Length (D) mm - 184.2
F-Bolt Diameter - M16
H (mm) - 17
J (mm) - 19.6
L (mm) - 76.2
Overall Width (M) mm - 133.4
N (mm) - 57.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
