125736 DODGE - F2B-SXV-50M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125736 DODGE - F2B-SXV-50M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - F2B-SXV-50M
Description (No-Lube/Sealed for Life) - F2B-SXV-50M-NL
Weight (kg) - 2.4

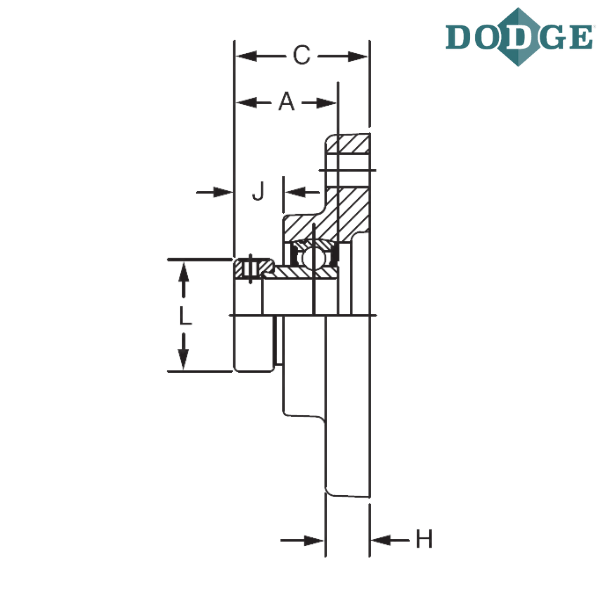

Length Through Bore (A) mm - 43.6
Overall Length (B) mm - 189
Thickness (C) mm - 53.8
Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter - M16
H (mm) - 16
J (mm) - 16.5
L (mm) - 69.9
Overall Width (M) mm - 115.8
N (mm) - 51.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
