125735 DODGE - F2B-SXV-45M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125735 DODGE - F2B-SXV-45M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - F2B-SXV-45M
Description (No-Lube/Sealed for Life) - F2B-SXV-45M-NL
Weight (kg) - 2.2

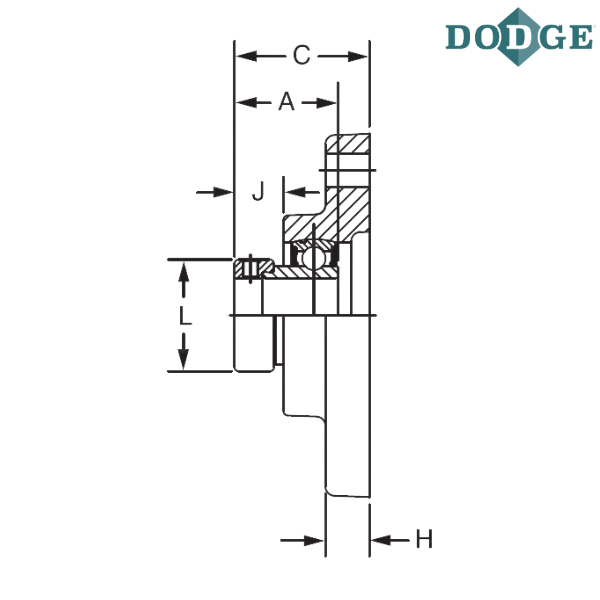

Length Through Bore (A) mm - 42.9
Overall Length (B) mm - 179.3
Thickness (C) mm - 52.6
Bolt Center to Center Length (D) mm - 148.3
F-Bolt Diameter - M14
H (mm) - 16
J (mm) - 16.8
L (mm) - 63.5
Overall Width (M) mm - 111.3
N (mm) - 48.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
