Description
Brand - DODGE
Item Number - 125734 DODGE - F2B-SXV-40M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F2B-SXV-40M
Description (No-Lube/Sealed for Life) - F2B-SXV-40M-NL
Weight (kg) - 2.2

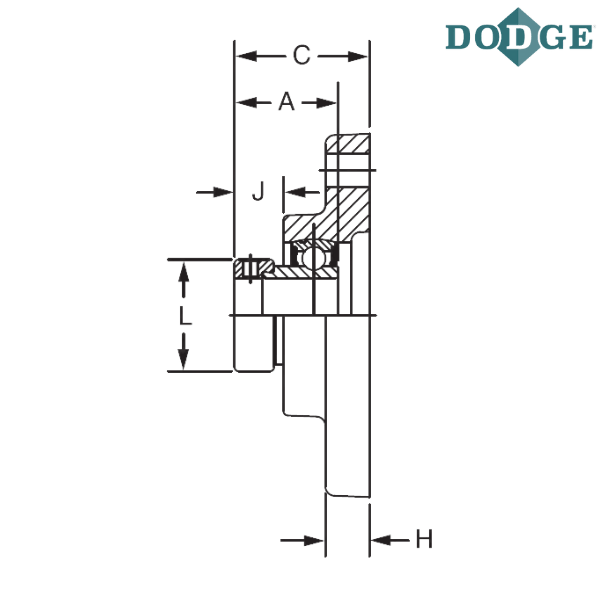

Length Through Bore (A) mm - 43.6
Overall Length (B) mm - 171.5
Thickness (C) mm - 52.6
Bolt Center to Center Length (D) mm - 143.8
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 18.5
L (mm) - 60.5
Overall Width (M) mm - 104.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
