125733 DODGE - F2B-SXV-35M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125733 DODGE - F2B-SXV-35M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - F2B-SXV-35M
Description (No-Lube/Sealed for Life) - F2B-SXV-35M-NL
Weight (kg) - 1.5

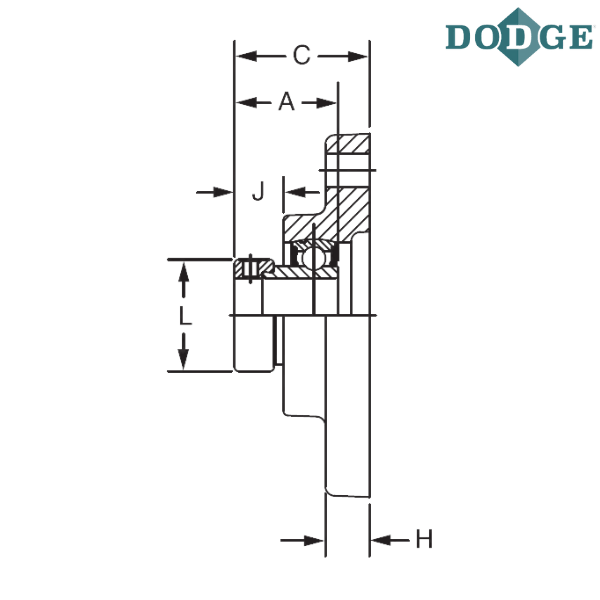

Length Through Bore (A) mm - 38.9
Overall Length (B) mm - 155.7
Thickness (C) mm - 47.5
Bolt Center to Center Length (D) mm - 130
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 16.5
L (mm) - 54.1
Overall Width (M) mm - 95.3
N (mm) - 46.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
