Description
Brand - DODGE
Item Number - 125730 DODGE - F2B-SXV-20M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2B-SXV-20M
Description (No-Lube/Sealed for Life) - F2B-SXV-20M-NL
Weight (kg) - 0.5

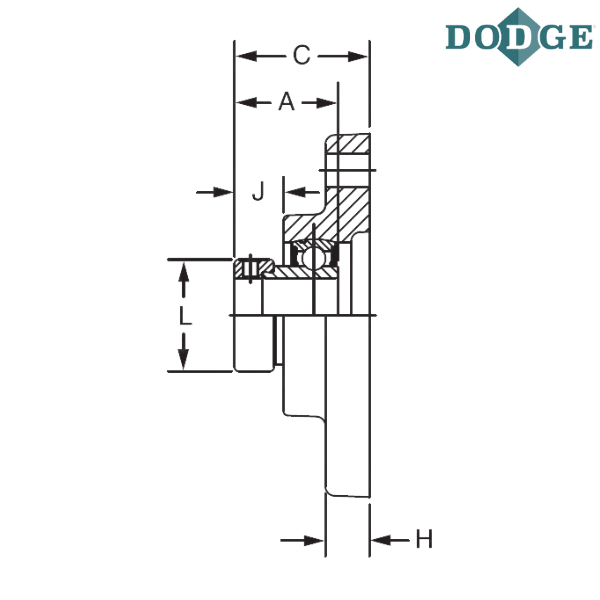

Length Through Bore (A) mm - 31
Overall Length (B) mm - 112
Thickness (C) mm - 39.1
Bolt Center to Center Length (D) mm - 89.7
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 14
L (mm) - 33.3
Overall Width (M) mm - 60.5
N (mm) - 38.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
