Description
Brand - DODGE
Item Number - 125719 DODGE - P2B-SXV-55M
Category - Eccentric SXV Collar Ball Bearings (SXV and SXVU Intermediate Duty Pillow Blocks)
Series - 211
Shaft Size (mm) - 55
Description - P2B-SXV-55M
Description (No-Lube/Sealed for Life) - P2B-SXV-55M-NL
Weight (kg) - 3.5

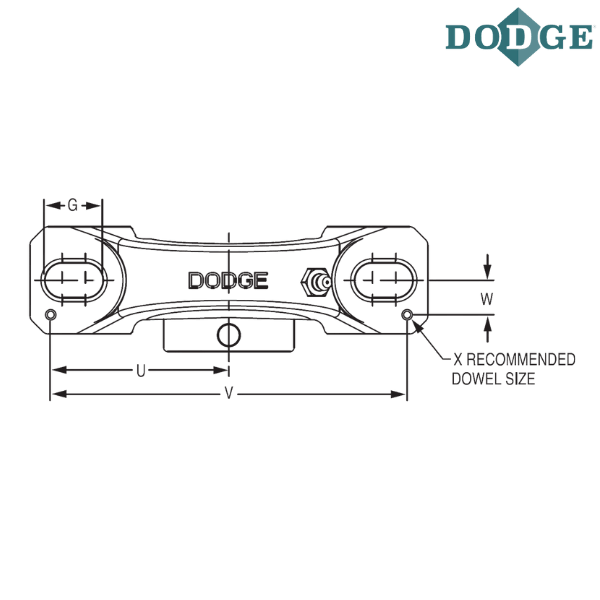

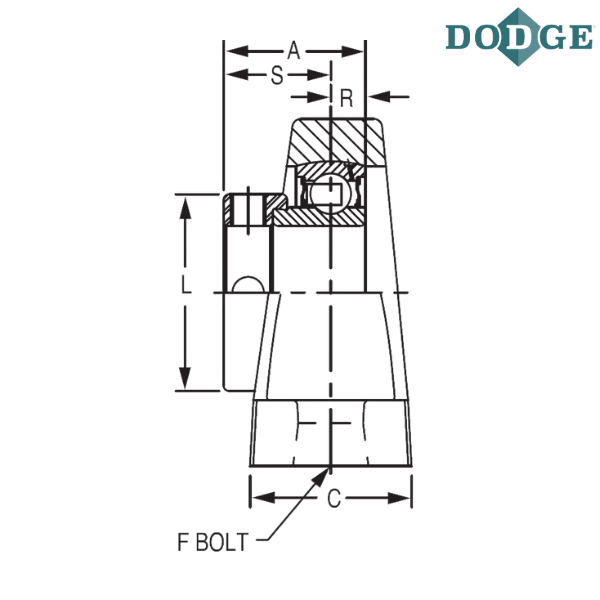

Length Through Bore (A) mm - 48.3
Overall Length (B) mm - 225.6
Width (C) mm - 58.4
Bolt to Bolt Minimum Distance (D min) mm - 162.1
Bolt to Bolt Maximum Distance (D max) mm - 189
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 126
L (mm) - 69.9
Base to Center Height (M) mm - 69.9
R (mm) - 12
S (mm) - 36.4
U (mm) - 100.1
V (mm) - 200.2
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
