Description
Brand - DODGE
Item Number - 125717 DODGE - P2B-SXV-45M
Category - Eccentric SXV Collar Ball Bearings (SXV and SXVU Intermediate Duty Pillow Blocks)
Series - 209
Shaft Size (mm) - 45
Description - P2B-SXV-45M
Description (No-Lube/Sealed for Life) - P2B-SXV-45M-NL
Weight (kg) - 2.5

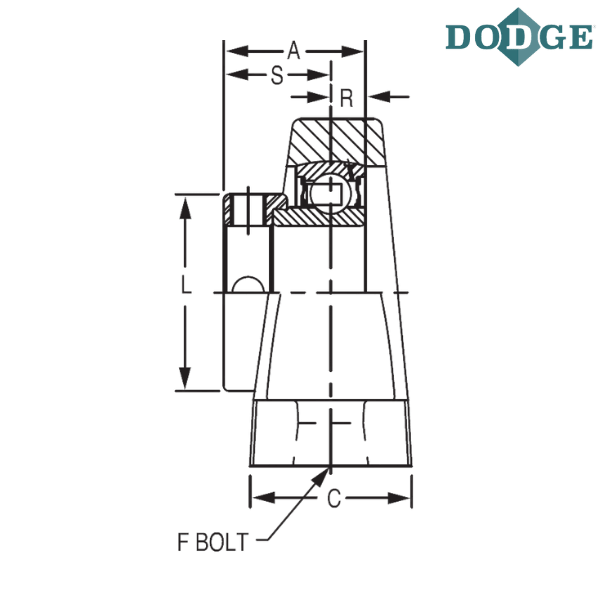

Length Through Bore (A) mm - 42.9
Overall Length (B) mm - 189
Width (C) mm - 50.8
Bolt to Bolt Minimum Distance (D min) mm - 139.7
Bolt to Bolt Maximum Distance (D max) mm - 157.2
F-Bolt Diameter - M12
G (mm) - 22.9
H (mm) - 19.1
Overall Height (J) mm - 108.7
L (mm) - 63.5
Base to Center Height (M) mm - 54
R (mm) - 10.9
S (mm) - 32

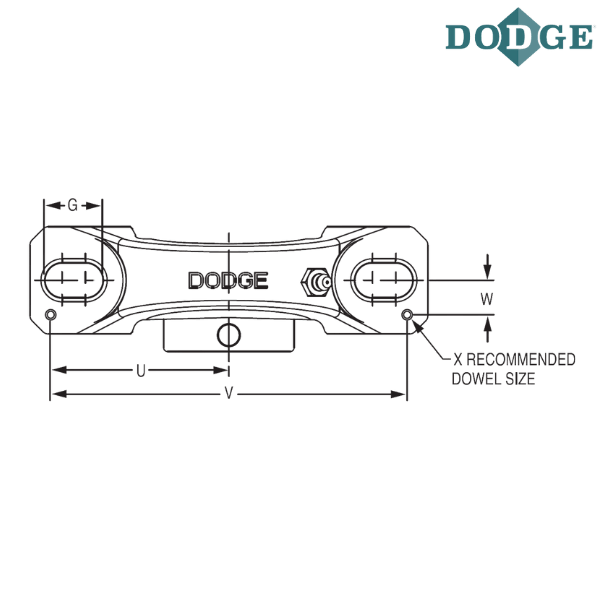

U (mm) - 85.9
V (mm) - 171.7
W (mm) - 17.5
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
