Description
Brand - DODGE
Item Number - 125714 DODGE - P2B-SXVU-30M
Category - Eccentric SXV Collar Ball Bearings (SXV and SXVU Intermediate Duty Pillow Blocks)
Series - 206 (SXVU)
Shaft Size (mm) - 30
Description - P2B-SXVU-30M
Description (No-Lube/Sealed for Life) - P2B-SXVU-30M-NL
Weight (kg) - 1.2

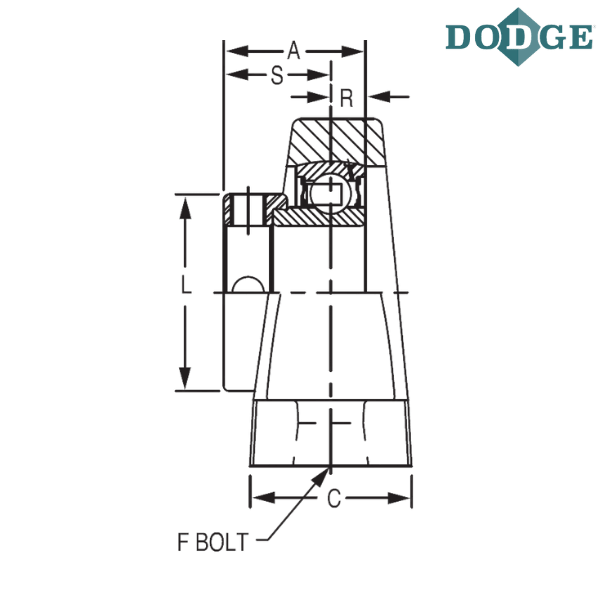

Length Through Bore (A) mm - 35.8
Overall Length (B) mm - 158.8
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 19.1
Overall Height (J) mm - 84.1
L (mm) - 44.5
Base to Center Height (M) mm - 42.9
R (mm) - 8.9
S (mm) - 26.7

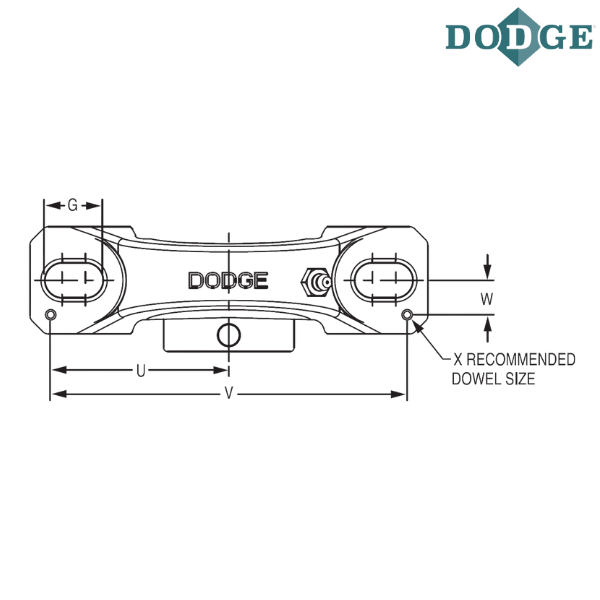

U (mm) - 73.2
V (mm) - 146.3
W (mm) - 14.2
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
U - Higher back pillow block
M - Metric
** Images are for representation purposes only
