Description
Brand - DODGE
Item Number - 125711 DODGE - P2B-SXVU-17M
Category - Eccentric SXV Collar Ball Bearings (SXV and SXVU Intermediate Duty Pillow Blocks)
Series - 203 (SXVU)
Shaft Size (mm) - 17
Description - P2B-SXVU-17M
Description (No-Lube/Sealed for Life) - P2B-SXVU-17M-NL
Weight (kg) - 0.6

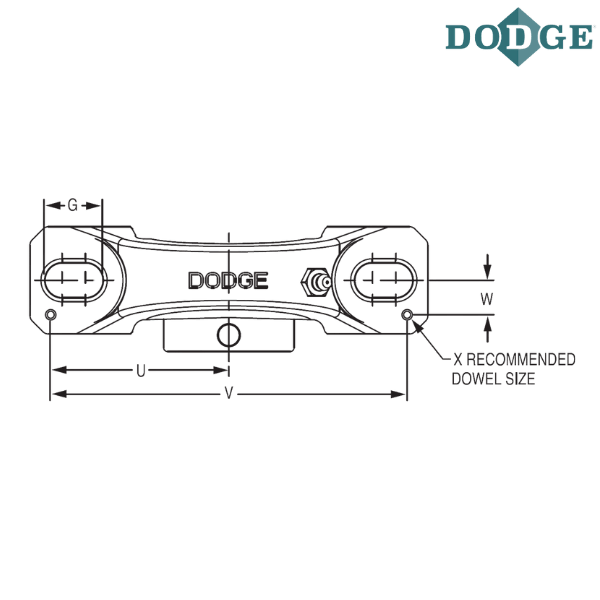

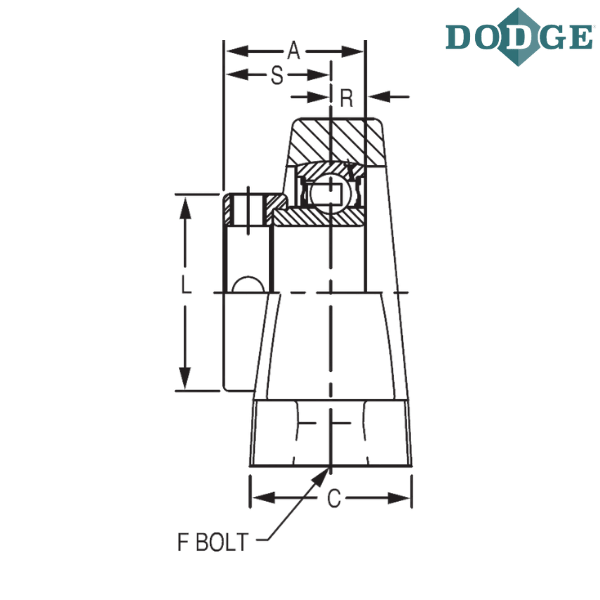

Length Through Bore (A) mm - 28.7
Overall Length (B) mm - 127
Width (C) mm - 30.5
Bolt to Bolt Minimum Distance (D min) mm - 82.6
Bolt to Bolt Maximum Distance (D max) mm - 103.1
F-Bolt Diameter - M10
G (mm) - 21.3
H (mm) - 15
Overall Height (J) mm - 57.7
L (mm) - 28.7
Base to Center Height (M) mm - 30.2
R (mm) - 6.6
S (mm) - 22.1
U (mm) - 57.2
V (mm) - 114.3
W (mm) - 9.7
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
U - Higher back pillow block
M - Metric
** Images are for representation purposes only
