125707 DODGE - F2B-VSC-40M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125707 DODGE - F2B-VSC-40M
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 2-Bolt Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F2B-VSC-40M
Description (No-Lube/Sealed for Life) - F2B-VSC-40M-NL
Weight (kg) - 1.83

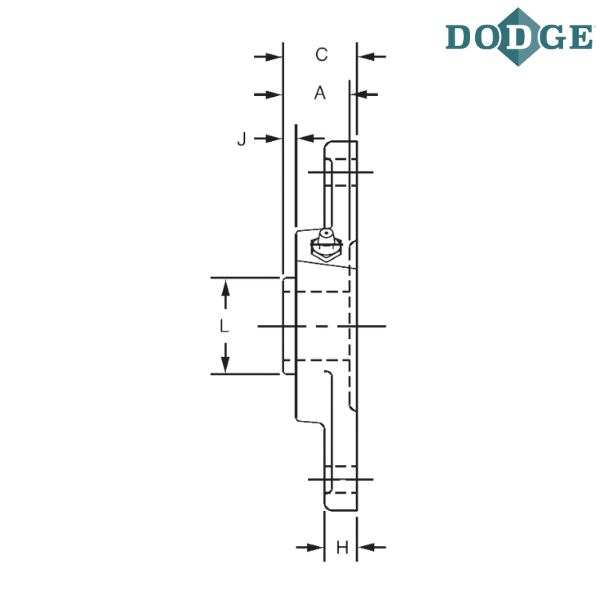

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 171.5
Thickness (C) mm - 50.3
Bolt Center to Center Length (D) mm - 143.8
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 16
L (mm) - 52.1
Overall Width (M) mm - 104.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
M - Metric

** Images are for representation purposes only
